Workshop manual guillotine shears CGM
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
Manual shear 2550 x 1mm; back gauge 12-750mm with side control included
Ref. CGM2550
Lead time: please contact us

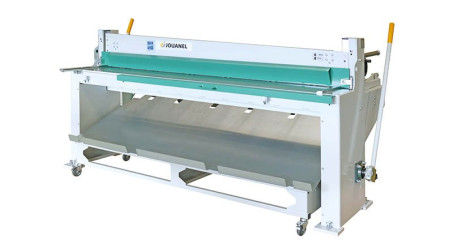

Manual guillotine shear with side levers for workshop, reference CGM2550, useful cutting length 2,50m, 1,0mm steel capacity, with rack-operated manual back gauge included. Model available with belt-type back gauge with control at the front of the machine (optional)
More info Optional complementary equipmentManual shear 2550 x 1mm; back gauge 12-750mm with side control included
> Product plus:
- Shears of new generation
- Flexible and balanced cutting bar
- Large geared-down side operating levers
- Square gauge and grooved table making easy the positioning
- Visibility of the blade for scribe cuts

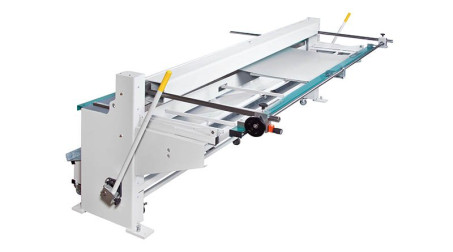

- Manual rack-operated back gauge included
- Conicity device for correct parallelism
> Standard equipment:
- 300mm wide and 800mm high front table, grooved every 10mm to cut easily without bearing on gauge

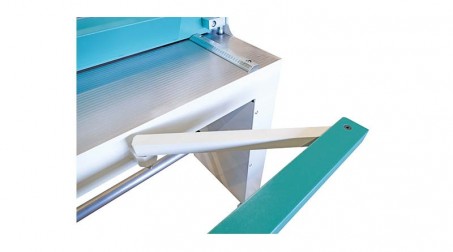

- Retractable front table + 480mm for large formats
- Retractable back metal sheet support 120mm (plate option excluded)

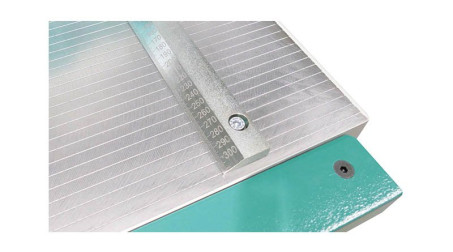

- Right-hand 500mm and left-hand 300mm graduated square gauge

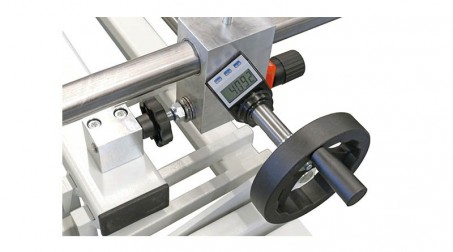

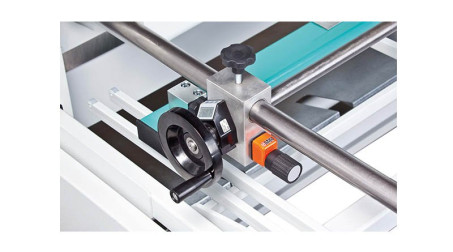

- Rack-operated back gauge with right-hand side control by wheel and digital display of positioning
- Automatic sheet clamping system
- One-piece blades are reversible once
Product features
| Useful cutting length (mm) | 2 550 | |||||||||
| Capacity steel S235JR (mm) * |
0,4 - 1,0 |
|||||||||
|
Capacity Zinc, Copper (mm) * |
0,4 - 1,2 |
|||||||||
|
Capacity Stainless Steel (mm) * |
0,4 - 0,6 |
|||||||||
|
Capacity 1050-H44 Aluminum (mm) * |
0,4 - 1,2 |
|||||||||
|
Blades |
reversible once |
|||||||||
|
Cutting angle |
1,5° |
|||||||||
|
Left-hand and right-hand cutting lever (mm) |
1 100 |
|||||||||
|
Right-hand scaled square gauge (mm) |
500 |
|||||||||
| Left-hand scaled square gauge (mm) | 300 | |||||||||
|
Back gauge stroke (mm) |
15 - 750 |
|||||||||
|

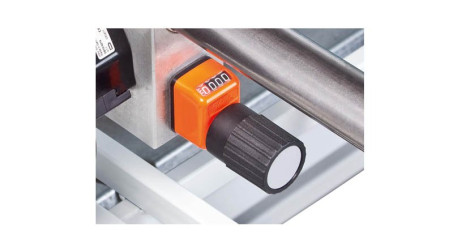

Conical adjustment on mechanical counter (mm) |
+/- 5 |
|||||||||
| Table height (mm) | 800 | |||||||||
|
Operating dimensions (mm) |
3 050 x 1 600 x 1 300 |
|||||||||
|
Net weight (kg) |
692 |
|||||||||
|
* min-max thickness |
||||||||||
