Automatic sheet holding plate

Back

Automatic sheet holding plate

Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge

Ref. CGM2550-PEIGNE

Lead time: please contact us

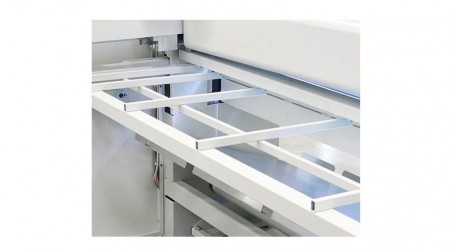

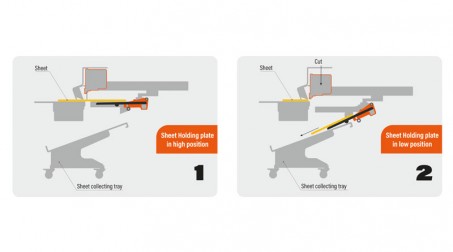

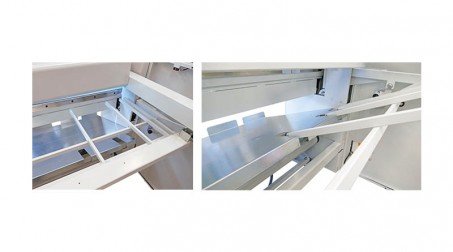

Automatic back metal sheet holding plate for shear CGM2550, reference CGM2550-PEIGNE. Device directly coupled to the cutting bar, allows the plate to be located automatically in upper position to hold the metal sheet and in low position to move the cut metal sheet into the tray

More info

Add to my cart
for a quotation request

Product features

Maximum distance between 2 fingers (mm)	400
Minimum distance between 2 fingers (mm)	40
Number of fingers	11
Maximum sheet size (mm)	750
