Double column hand edge roller, 3 guide rolls, 200mm

New

  • Plieuse à main disques grands diamètres, double colonne, 3 rouleaux de guidage - 200 mm

    Click to enlarge

  • Plieuse à main disques grands diamètres, double colonne, 3 rouleaux de guidage - 200 mm

    Click to enlarge

  • Plieuse à main disques grands diamètres, double colonne, 3 rouleaux de guidage - 200 mm

    Click to enlarge

  • Plieuse à main disques grands diamètres, double colonne, 3 rouleaux de guidage - 200 mm

    Click to enlarge

Ref. PLIMDDC3-200

In stock

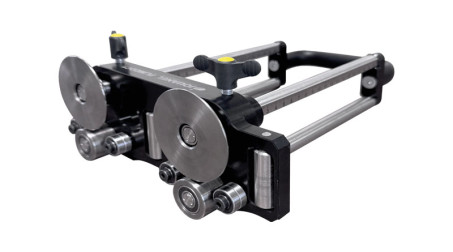

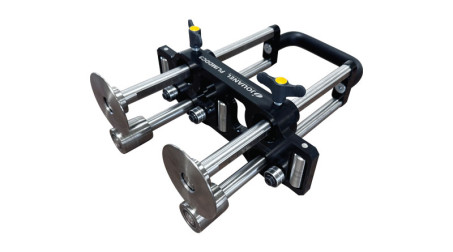

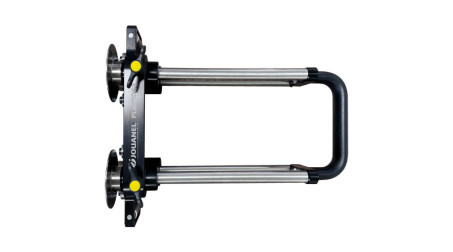

Double column hand edge roller with large-diameter discs, reference PLIMDDC3-200, 0.7mm steel capacity, 3 guide rolls, edge height from 9 to 200mm

More info Related products

Double column hand edge roller, 3 guide rolls, 200mm



Two large-diameter discs for bending from 0 to 180° with a single tool!

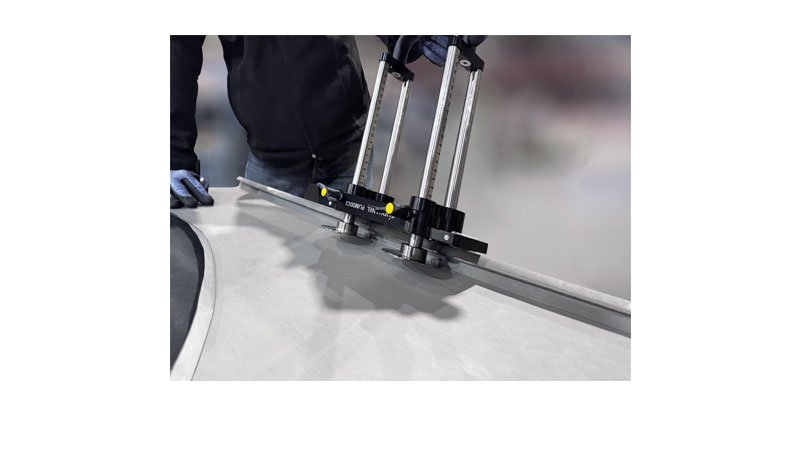

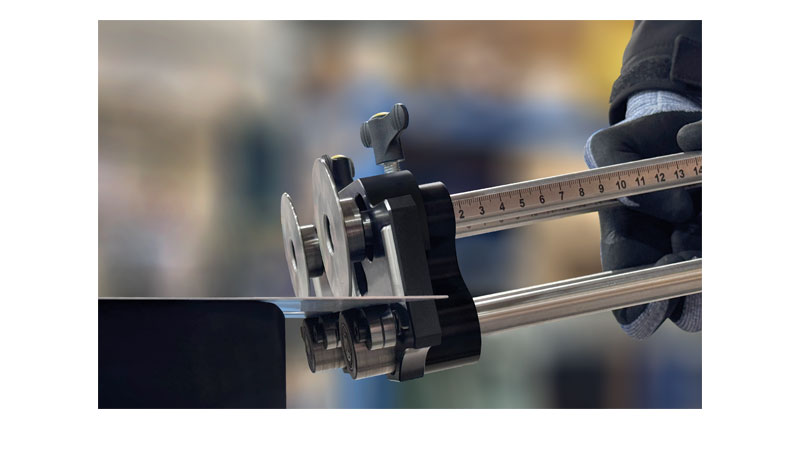

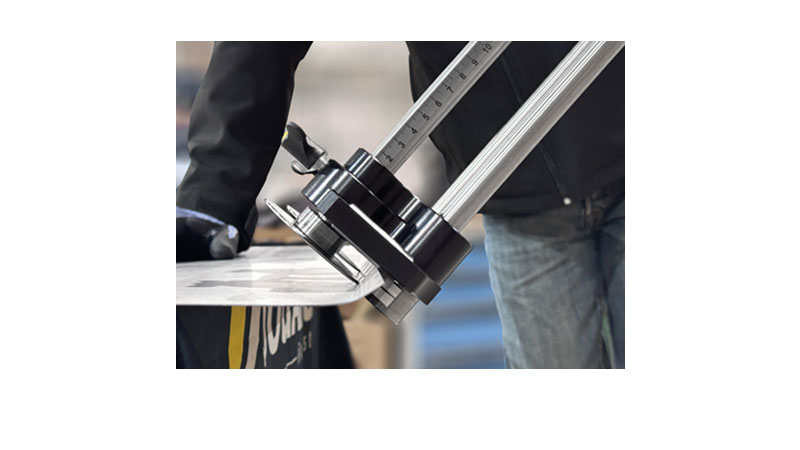

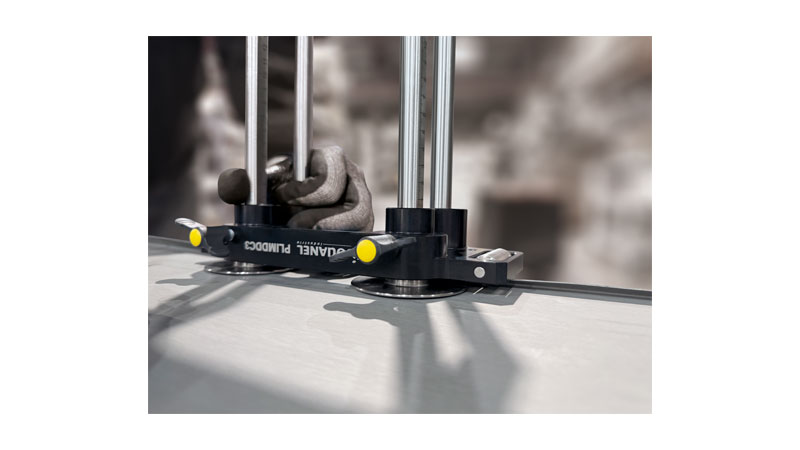

This double-column hand edge roller can be used to make bends and counter-bends from 9 to 200mm height. Its double-column design and three guide rollers make it particularly effective for creating long gutters or upstands on trays. Its two large-diameter discs allow for very high precision in the bending angle, tight counter-bends, and the creation of 180° clamps from a maximum upstand of 20mm.

> Product plus:

  • Time saving for all folding works on building site
  • A 2-in-1 tool with large-diameter bending discs for bending
    and forming clamps at 180°
  • Hand edge roller particularly suited for long lengths
  • Double-column design ensuring secure support during bending
  • 3-roller body for stable and precise guidance


Note: product manufactured by JOUANEL Industrie and part of the "manual machines" range


> Standard equipment:

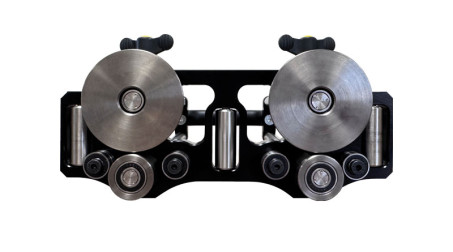

  • 2 folding discs, 70mm-diameter
  • 3 guide rolls
  • Single-piece body made of aluminum, machined and black anodized
  • Columns, rolls and discs in stainless steel
  • Graduations in mm, indelebile laser engraving
  • Double locking of edge height by butterfly handles
  • Black covered handle
  • Fabric storage pocket

Product features

FEATURES REF. GENCOD WEIGHT

Double column hand edge roller with large-diameter discs, edge height from 9 to 200mm.
Overall dimensions (LxWxH): 245x130x330mm

PLIMDDC3-200 3547710494493 3990g
FOLDING CAPACITY (mm)
Zinc and 1050-H44 Aluminum 1.0
Copper 0.8
Steel 0.7
Stainless Steel 0.5
FOLDING ANGLES (mm)
Edge height:
Maximum bending angle 90°
Minimum edge (mm) 9
Maximum edge (mm) 200
For clamps:
Maximum bending angle 180°
Maximum edge (mm) 20
