Hand edge roller for drip edges 8mm
New
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
Ref. PLIM8
In production

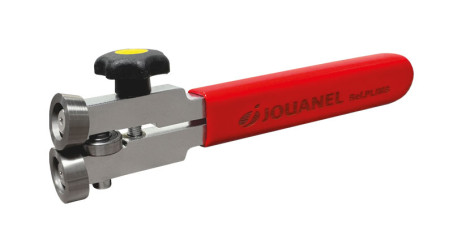

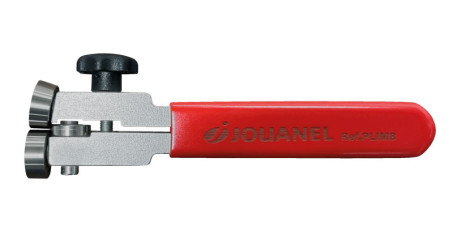

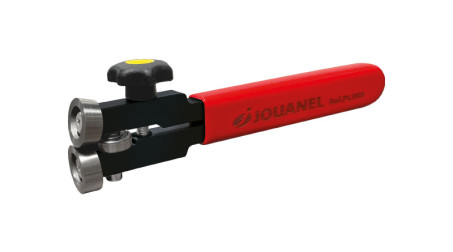

Mini hand edge roller for flange with inclined upper roller, reference PLIM8, 0.7mm steel capacity, edge height 8mm
More info Related productsHand edge roller for drip edges 8mm

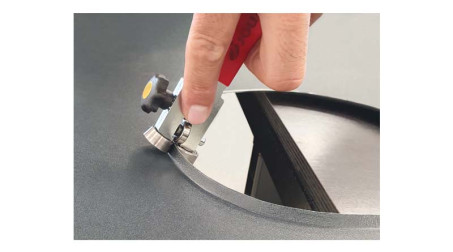

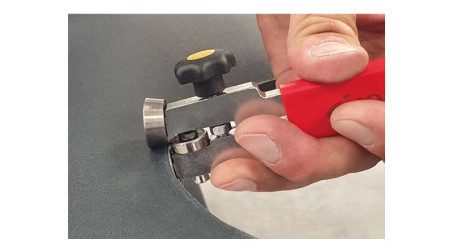

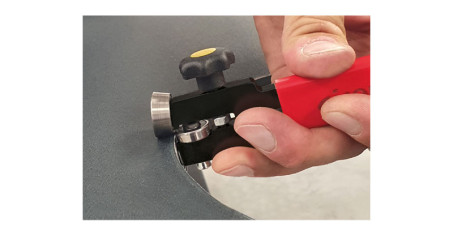

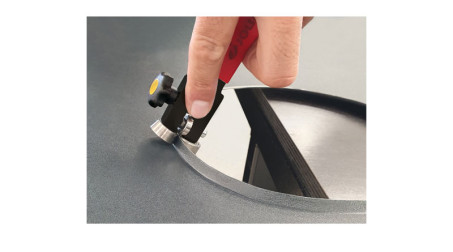

The mini bender PLIM8 can be used to produce straight, concave or convex edges, with large or small radius. It can also be used to produce drip edges and flashings. By moving the guide rolls back and forth along the edge of the sheet, the user gradually increases the bending angle.
> Product plus:
- Easy to use on site
- The perfect size for small 8mm flanges and drip edges
- Ideal for stapling
- For straight, concave or convex edges
- Folding angle from 0 to more than 90°(inclined upper roller)
- Pressure adjustment by knob
NB: product manufactured by JOUANEL Industrie
and part of the "manual machines" range
> Standard equipment:

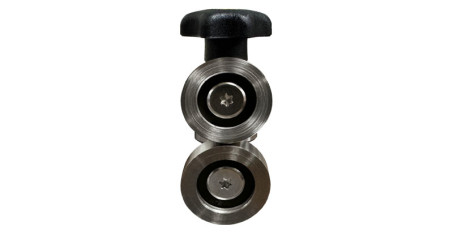

- 3 steel rollers made of hardened steel
- Folder roller made inclinated at 10°
- Pressure adjustment by knob
- PVC-coated handle
Product features
| FEATURES | REF. | GENCOD | WEIGHT |
| Mini hand edge roller, edge height 8mm | PLIM8 |
3547710494301 |
215 g |
| FOLDING CAPACITY (mm) | |||
| Zinc and 1050-H44 Aluminum | 1.0 | ||
| Copper | 0.8 | ||
| Steel | 0.7 | ||
| Stainless Steel | 0.5 |
