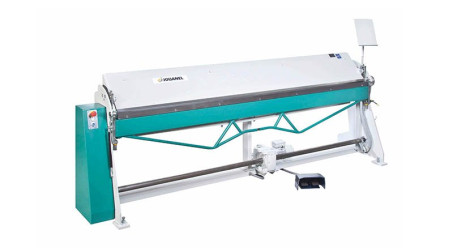

Workshop folding machine 3,08 m with electric clamping tool - equipped with a 15 mm apron tool - steel 1 mm

Guide rail for roller shear CCMA, for folding machine PVX3080

Guiding rail, reference RVX3080MA, for workshop manual folding machine PVX3080. Hinged system at the front of the folding machine intended to use the CCMA roller shear for the scribe cuts of material before folding

CCMA roller shear - cutting capacity zinc 0.8 mm, aluminium 0.8 mm, steel 0.63 mm

Roller shear, reference CCMA, 0.8mm zinc capacity, 0.7mm steel capacity, to cut the material on manual folding machines. Roller shear to be used on a guiding rail only

Beading accessory with a 16 or 18-mm Ø stick, length 3m (Ø to be specified at the order PVX)

3-position aluminium geared-down beading accessory with 16 or 18mm Ø stick (Ø to specify at the order), reference ABAL3080V, 0.55mm zinc capacity for a 16mm Ø stick and 0.70mm for a 18 Ø stick. Gear reduction system to make very regular beads without effort. Used with the PVX folding machines

Stick length 3m, Ø 16mm, for ABH3080 and ABAL3080

Extra 16mm Ø stick, reference BAH16-3080, for geared-down beading accessory ABH16-3080 and ABAL3080. Used for the folding machines models PCX3080A, PVX3080, PVX3080T and PVS3080MR

Extra rotating back gauge finger for PVX-PZX-PVS

Extra rotating gauge finger, reference DOIGT-PVX-BC-ROT for back gauge with belt PVXBC, PZXBC and PVSBC. Adding one or several extra gauge fingers provides a better back holding of the metal sheet and improves its whole positioning against the gauge. Easy relocation of the gauge fingers acc. to the metal sheet format

Belt Back Gauge - 750 mm

Back gauge with belt, reference PVXBC3080, from 5 to 750mm for folding machines models PVX3080 and PVX3080T. Gauge with lateral control by wheel and adjustable by digital counter, equipped with 4 repositionable fingers over the length

Extra back gauge arm 750 mm

Extra back gauge arm with slide type X, reference PVXBS-C750, adjustable from 60 to 750mm. Adding an extra gauge arm provides a better back holding of the metal sheet on large lengths and improves positioning before cutting or folding

2 adjustable back gauge arms from 60 to 500 mm, for PVX3080 folding machine

Set of 2 back gauge arms with slide type X, reference PVXB3080-500, adjustable from 65 to 500mm, for manual folding machines PVX3080. The gauge arms slide on the fixing rail at the back of the machine and are stopped in position. Possible positioning of the metal sheet as per the desired dimension as well as its back support

2 adjustable back gauge arms from 60 to 750 mm

Set of 2 back gauge arms with slide type X, reference PVXB3080, adjustable from 65 to 750mm, for manual folding machines PVX3080. The gauge arms slide on the fixing rail at the back of the machine and are stopped in position. Possible positioning of the metal sheet as per the desired dimension as well as its back support

Wide apron tool (20 mm)

Extra folding beam tool, length 3080mm, width 20mm, reference PVX-REG20-3080, for folding machines models PVX3080 and PVX3080T. NB: more the tool is wide, more the machine folding capacity is high (Capacity: +20% compared to the 15mm standard tool)

Narrow apron tool (12 mm)

Extra narrow folding beam tool, length 3080mm, width 12mm, reference PVX-REG12-3080, for folding machines models PVX3080 and PVX3080T. NB: more the tool is narrow, less the machine folding capacity is important (Capacity: -30% compared to the 15mm standard tool)

Stick length 3m, Ø 18mm, for ABH3080 and ABAL3080

Extra 18mm Ø stick, reference BAH18-3080, for geared-down beading accessory ABH18-3080 and ABAL3080. Used for the folding machines models PCX3080A, PVX3080, PVX3080T and PVS3080MR

Tool to close seams at 180° with adjustable heigth

Tool to close the seams, reference OFP-180, to make hems at 180° from a seam at 135°, 0.8mm steel capacity

Roller offsetting tool on CCMA guide rail

Roller offsetting tool, reference OSRA, for use on the guide rails of Jouanel Industrie folding machines. For ribbing flat sheet metal, with or without hollow joints, to create underside cladding, cladding profiles, dormer cheeks or to reinforce the rigidity of sheet metal, steel capacity 0.8mm
