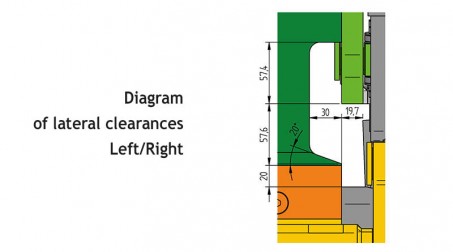

  • Dégagements latéraux EN

    Click to enlarge

gallery

Workshop folding machine 3,08 m - steel 0.8 mm - with segmented clamping beam tool

Ref. PVX3080T

Lead time: please consult us

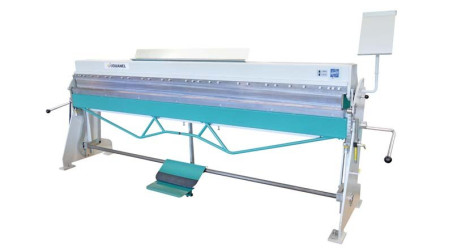

Manual folding machine for workshop, reference PVX3080T, useful folding length 3m, 1.0mm zinc capacity - 0.8mm S235JR steel capacity, with segmented clamp, ergonomic folding beam and 15mm narrow tool, clamping-loosening foot pedal, graduated angle gauge and angle scale, left-hand and right-hand lateral levers

More info Optional complementary equipment
Add to my cart
for a quotation request
Product sheet

Workshop folding machine 3,08 m - steel 0.8 mm - with segmented clamping beam tool


> Product plus:

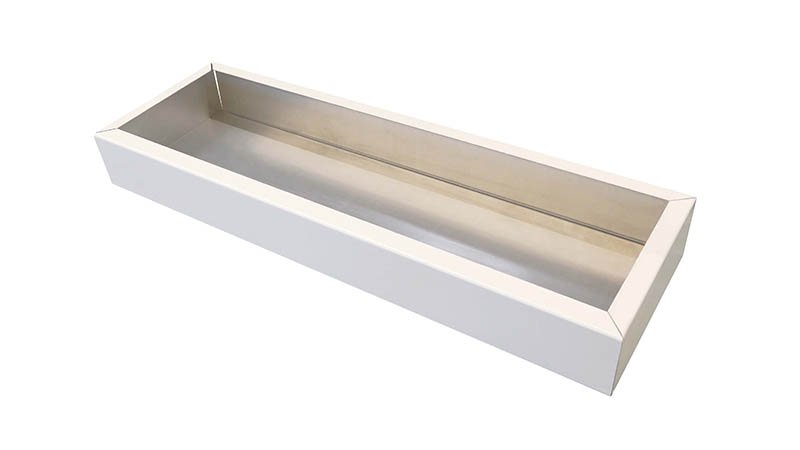

  • Possible standard or complex folding with raised edges on 4 sides

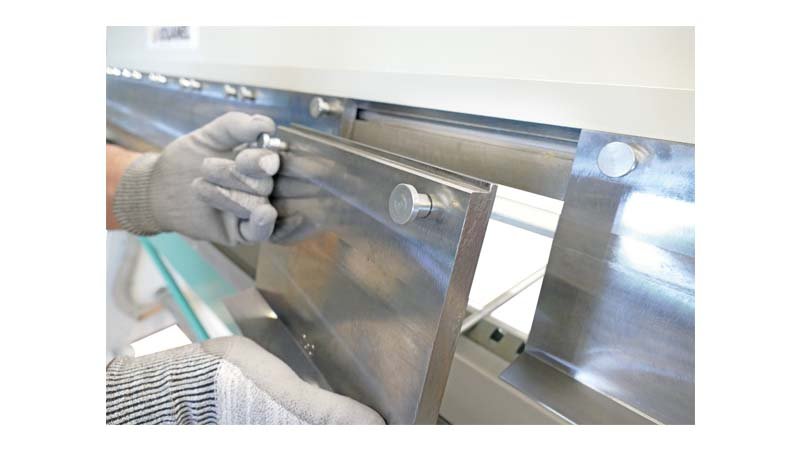

  • Segments removable by pull and repositionable by sliding
  • Suitable for small-lot shaping work
  • Folds and beads
  • Ergonomic folding beam for a better operator's position
  • Interchangeable folding beam tool to increase folding capacity
  • Folding made by cylinder
  • Machined clamping beam tool to make hems easily
  • Equipped with a wide clamping-loosening foot pedal


> Standard equipment:

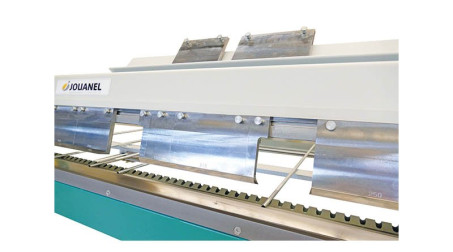

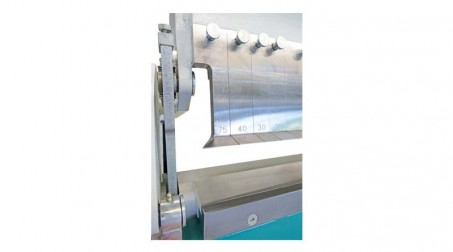

  • Clamp with engraved segments (width of segments)

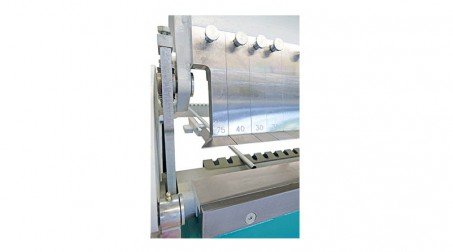

  • Left-hand and right-hand horn (30 mm)
  • Clamping beam tool at 20°, with segments and interchangeable
  • Folding beam rotation on needle bearing

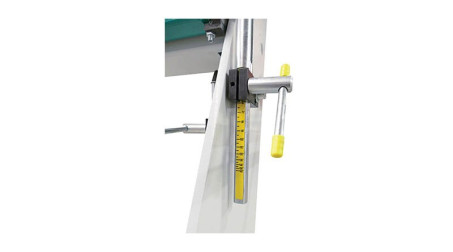

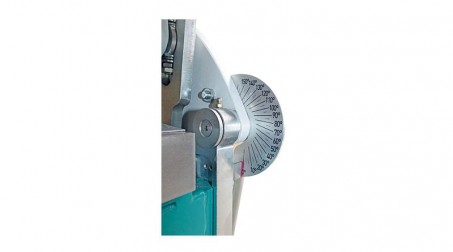

  • Graduated angle gauge
  • Graduated angle scale
  • 2 side operating levers

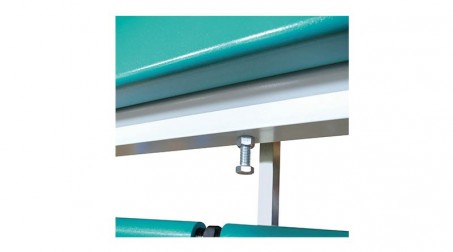

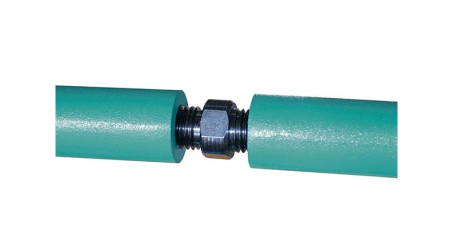

  • Easy vertical adjustment of the folding beam thanks to the graduated wheels, makes possible radius setting and easy-made reverse bend
  • Clamping-loosening foot pedal
  • Console and tool support

Product features

Useful folding lenght (mm)

3 080
Capacity Zinc / steel S235JR (mm)*

1 / 0,8
Max folding angle 160°
Clamp opening 95
Useful segment height (mm) 120
Dimensions (mm)

3750 L x 800 l x 1400 H
Gross weight (kg) 915

Segments width (mm)

25, 30, 35, 40, 50, 75, 75, 100, 100, 150, 150, 200, 200, 200, 250, 250, 250, 300, 300, 300

*Capacity with standard tool of 15 mm

Minimum width of fold = 15 times the thickness



Optional complementary equipment

Accessoire à boudiner ALU avec baguette Ø14, 16 ou 18mm, long 3m à préciser à la cde

Beading accessory with a 16 or 18-mm Ø stick, length 3m (Ø to be specified at the order PVX)

3-position aluminium geared-down beading accessory with 16 or 18mm Ø stick (Ø to specify at the order), reference ABAL3080V, 0.55mm zinc capacity for a 16mm Ø stick and 0.70mm for a 18 Ø stick. Gear reduction system to make very regular beads without effort. Used with the PVX folding machines



Add to my cart
for a quotation request
Baguette de Ø 16 mm pour ABH3080 et ABAL3080

Stick length 3m, Ø 16mm, for ABH3080 and ABAL3080

Extra 16mm Ø stick, reference BAH16-3080, for geared-down beading accessory ABH16-3080 and ABAL3080. Used for the folding machines models PCX3080A, PVX3080, PVX3080T and PVS3080MR



Add to my cart
for a quotation request
Baguette de Ø 18 mm pour ABH3080 et ABAL3080

Stick length 3m, Ø 18mm, for ABH3080 and ABAL3080

Extra 18mm Ø stick, reference BAH18-3080, for geared-down beading accessory ABH18-3080 and ABAL3080. Used for the folding machines models PCX3080A, PVX3080, PVX3080T and PVS3080MR



Add to my cart
for a quotation request

Narrow apron tool (12 mm)

Extra narrow folding beam tool, length 3080mm, width 12mm, reference PVX-REG12-3080, for folding machines models PVX3080 and PVX3080T. NB: more the tool is narrow, less the machine folding capacity is important (Capacity: -30% compared to the 15mm standard tool)



Add to my cart
for a quotation request

Wide apron tool (20 mm)

Extra folding beam tool, length 3080mm, width 20mm, reference PVX-REG20-3080, for folding machines models PVX3080 and PVX3080T. NB: more the tool is wide, more the machine folding capacity is high (Capacity: +20% compared to the 15mm standard tool)



Add to my cart
for a quotation request
Ensemble de 2 butées arrières à glissière, course 60 à 750 mm

2 adjustable back gauge arms from 60 to 750 mm

Set of 2 back gauge arms with slide type X, reference PVXB3080, adjustable from 65 to 750mm, for manual folding machines PVX3080. The gauge arms slide on the fixing rail at the back of the machine and are stopped in position. Possible positioning of the metal sheet as per the desired dimension as well as its back support



Add to my cart
for a quotation request
Butée arriere à glissière pour plieuse PVX

2 adjustable back gauge arms from 60 to 500 mm, for PVX3080 folding machine

Set of 2 back gauge arms with slide type X, reference PVXB3080-500, adjustable from 65 to 500mm, for manual folding machines PVX3080. The gauge arms slide on the fixing rail at the back of the machine and are stopped in position. Possible positioning of the metal sheet as per the desired dimension as well as its back support



Add to my cart
for a quotation request
Bras de butée supplémentaire, course 60 à 750 mm

Extra back gauge arm 750 mm

Extra back gauge arm with slide type X, reference PVXBS-C750, adjustable from 60 to 750mm. Adding an extra gauge arm provides a better back holding of the metal sheet on large lengths and improves positioning before cutting or folding



Add to my cart
for a quotation request
Butée arrière à courroie, course 5 à 750 mm

Belt Back Gauge - 750 mm

Back gauge with belt, reference PVXBC3080, from 5 to 750mm for folding machines models PVX3080 and PVX3080T. Gauge with lateral control by wheel and adjustable by digital counter, equipped with 4 repositionable fingers over the length



Add to my cart
for a quotation request
Doigt de butée rotatif complémentaire pour butée arrière PVXBC, PZXBC et PVSBC

Extra rotating back gauge finger for PVX-PZX-PVS

Extra rotating gauge finger, reference DOIGT-PVX-BC-ROT for back gauge with belt PVXBC, PZXBC and PVSBC. Adding one or several extra gauge fingers provides a better back holding of the metal sheet and improves its whole positioning against the gauge. Easy relocation of the gauge fingers acc. to the metal sheet format
