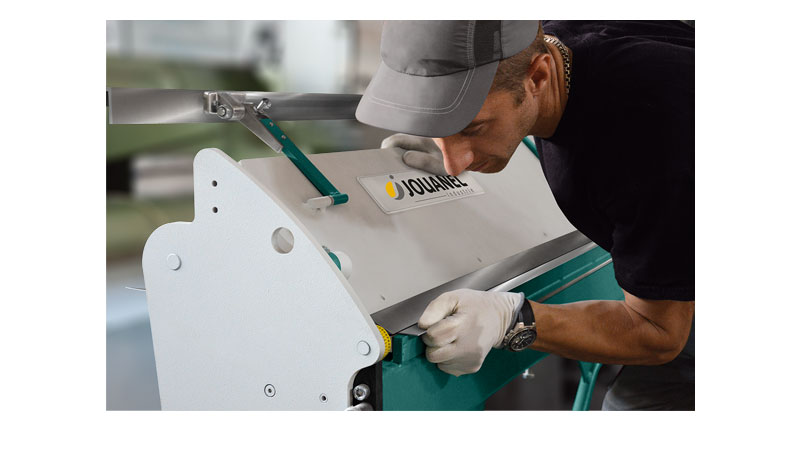

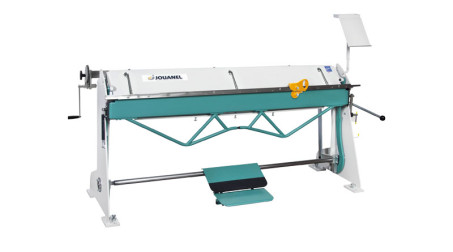

Workshop folding machine 2,54 m - steel 1 mm with ergonomic apron and pedal

Guide rail for roller shear CCMA, for folding machine PZX2540

Guiding rail, reference RZX2540MA, for workshop manual folding machine PZX2540. Hinged device at the front of the folding machine intended to use the CCMA roller shear for the scribe cuts of material before folding

CCMA roller shear - cutting capacity zinc 0.8 mm, aluminium 0.8 mm, steel 0.63 mm

Roller shear, reference CCMA, 0.8mm zinc capacity, 0.7mm steel capacity, to cut the material on manual folding machines. Roller shear to be used on a guiding rail only

Beading accessory with a 16 or 18-mm Ø stick, length 2.5m (Ø to be specified at the order)

3-position aluminium geared-down beading accessory with 16 or 18mm Ø stick (Ø to specify at the order), reference ABAL2540, 0.65mm zinc capacity for a 16mm Ø stick and 0.80mm for a 18 Ø stick. Gear reduction system to make very regular beads without effort. Used with the manual folding machine PCX2540A and PZX2540

Stick length 2.5m, Ø 16mm, for ABH2540 and ABAL2540

Extra 16mm Ø stick, reference BAH16-2540, for geared-down beading accessory ABH16-2540 and ABAL2540. Used for the folding machines models PCX2540A and PZX2540

Stick length 2.5m, Ø 18mm, for ABH2540 and ABAL2540

Extra 18mm Ø stick, reference BAH18-2540, for geared-down beading accessory ABH18-2540 et ABAL2540. Used for the folding machines models PCX2540A and PZX2540

Tool to close seams at 180° with adjustable heigth

Tool to close the seams, reference OFP-180, to make hems at 180° from a seam at 135°, 0.8mm steel capacity

Roller offsetting tool on CCMA guide rail

Roller offsetting tool, reference OSRA, for use on the guide rails of Jouanel Industrie folding machines. For ribbing flat sheet metal, with or without hollow joints, to create underside cladding, cladding profiles, dormer cheeks or to reinforce the rigidity of sheet metal, steel capacity 0.8mm

Sliding set of 2 back gauges with ways from 40 up to 510 mm

Set of 2 back gauge arms with slide type X, reference PCXB2540, adjustable from 40 to 510mm, for manual folding machines PCX2540A and PZX2540. The gauge arms slide on the fixing rail at the back of the machine and are stopped in position. Possible positioning of the metal sheet as per the desired dimension as well as its back support

Extra back gauge arm, stroke 510 mm, for PCX1020, PCX2040A and PCX2540A

Extra back gauge arm with slide type X, reference PCXBS2-2.5, adjustable from 40 to 510mm. Adding an extra gauge arm provides a better back holding of the metal sheet on large lengths and improves positioning before cutting or folding

Back table 2,5 m with orientable gauge

Back table, reference ETBX2540, for folding machine PZX2540, gauge from 60 to 1000mm. Back table equipped with orientable tool over the whole length to abut the metal sheet easily acc. to the desired dimension before cutting or folding
