Workbench lever-operated shears CLP
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge

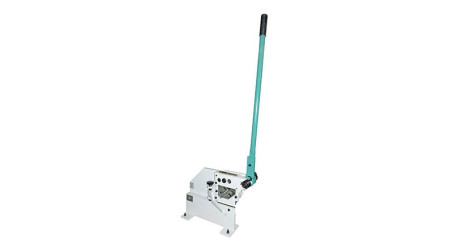

Workbench manual lever-operated shears - 175 mm x 6 mm
Ref. CLP10C
In stock
Workbench manual lever-operated shears, reference CLP10C, for metal sheet, flat bar, round bar, square bar, angles and T-pieces, cutting capacity on the first quarter of 6,0mm steel blade, cutting capacity over the whole length of the 5,0mm steel blade
More infoWorkbench manual lever-operated shears - 175 mm x 6 mm
Product features
|
Length of lower blades (mm) |
175 |
|
Cutting capacity Steel S235JR |
6 |
|
Cutting capacity Steel sheet S235JR over the whole length (mm) |
5 |
|
Cutting capacity Steel S235JR - Flat bar (mm) |
70 x 6 |
|
Cutting capacity Steel S235JR - Round bar (mm) |
15 |
|
Cutting capacity Steel S235JR - Square bar (mm) |
15 |
|
Cutting capacity Steel S235JR - Angles (mm) |
50 x 5 |
|
Cutting capacity Steel S235JR - T-pieces (mm) |
30 x 30 x 4 |
|
Weight (kg) |
95 |
|
Motion transfer |
by rack |
