Workshop universal electric folding machines PTS

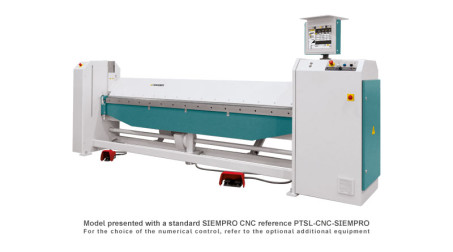

Universal electric folding machine 3m x 1.5mm
Ref. PTS3100-15
Price and lead time: please consult us
Universal electric folding machine for workshop, reference PTS3100-15, useful folding length 3m, 2.0mm 1050-H44 aluminum capacity - 1.5mm 400N/mm² steel capacity (capacities with 25mm folding beam tool), control by pedal and 2 interchangeable 15mm and 25mm folding beam tools supplied.
More info Optional complementary equipmentUniversal electric folding machine 3m x 1.5mm
> Product plus:
- Repeatability and accuracy
- Folding speed and fast-moving back gauge
- Folding quality even for fine thicknesses
- Two types of numerical controls available
(see complementary equipment) - 2 folding beam geometries available (straight or with clearance)
(for special folding beam with clearance, see complementary equipment)
> Standard equipment:
- Supply of 2 interchangeable 15 and 25mm folding beam tools
- Interchangeable clamping beam tool at 20° making easy the production of U profiles
- Folding beam crowning device
- Folding radius adjustment
- Double operator control:
- 1 main double action pedal for 1 operator
- 1 additional simple pedal in mode 2 operators
Product features
| Useful folding length (mm) |
3 100 |
|
Capacity steel 400N/mm² (mm) with folding beam 25mm |
1.5 |
|
Capacity steel 400N/mm² (mm) with folding beam 15mm |
1.0 |
|
Capacity 1050-H44 aluminum (mm) with folding beam 25mm |
2.0 |
|
Capacity 1050-H44 aluminum (mm) with folding beam 15mm |
1.5 |
| Capacity galvanized steel (mm) with folding beam 25mm | 1.2 |
| Capacity galvanized steel (mm) with folding beam 15mm | 0.8 |
| Capacity stainless steel 304L (mm) with folding beam 25mm | 1.0 |
| Capacity stainless steel 304L (mm) with folding beam 15mm | 0.7 |
|
Table height (mm) |
830 |
| Clamping beam tool angle |
20° |
| Clamp opening (mm) |
130 |
| Folding speed (°/s) | 60 |
| Clamping speed without safety light curtains (mm/s) | 10 |
| Clamping speed with safety light curtains (mm/s) | 40 |
|
Power supply (V)* |
400 V three-ph + neutral + earth |
|
Total power (kW) |
2.6 |
|
Dimensions without back gauge (mm) |
4 260 x 865 x 1 800 |
|
Dimensions with electric back gauge |
4 260 x 1 780 x 1 800 |
| Gross weight (kg) without electric back gauge |
2 500 |
|
* Electrical voltage to be specified upon order |
|
|
90° bending capacities / Minimum fold width: 15 times the thickness Clamp flattening = 1/3 of max. thickness capacity |
|
Optional complementary equipment
GRAF CNC, 3 axes, dynamic graphic for electric folding machines
for a quotation request
Bending angle correction (Springback mode) for GRAF CNC for PTS and PTL, thickness up to 1mm
for a quotation request
Bending angle correction (Springback mode) for SIEMPRO CNC for PTS and PTL
for a quotation request
Safety light curtains at the front, quicker clamping, for electric folding machine
for a quotation request
Fully retractable back gauge fingers, pneumatic device, for 3m PTS/PTL
for a quotation request
Electric back gauge, 10-750 mm, for 3m electric folding machine
for a quotation request
Electric back gauge, 10-1000 mm, for 3m electric folding machine
for a quotation request
Electric back gauge, 10-1500 mm, for 3m electric folding machine
for a quotation request
Extra pneumatic conical folding, manual adjustement, for BAE750
for a quotation request
Extra pneumatic conical folding, manual adjustement, for BAE1000
for a quotation request
