Set of two sliding back gauges for HS33
-
Click to enlarge
-
Click to enlarge
Ref. HS33B
In production

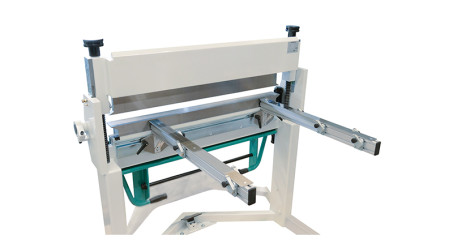

Set of 2 sliding back gauge arms, reference HS33B, with a range of 60 to 750 mm, for the HS33 folding machine. The back gauge arms allow the metal sheet to be positioned to the desired dimensions and support it in the back. Each back gauge arm has 4 retractable tilting stops that can be adjusted and used independently.
More infoSet of two sliding back gauges for HS33
> Product plus:
-
Support the metal sheet in the back
-
Positioning to the required size
-

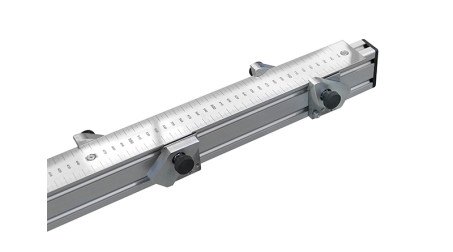

4 retractable tilting stops that can be adjusted and used independently
-
Make successive bends thanks to pre-adjustments
Product features
|
Back gauge stroke (mm) |
60 to 750 |
|
No. of gauge arms |
2 |
|
Number of pre-adjustable positions / back gauge arm |
4 |
| Minimum distance between 2 fingers (mm) | 48 |
