Workshop semi-electric folding machines with segments PVXTPE
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge

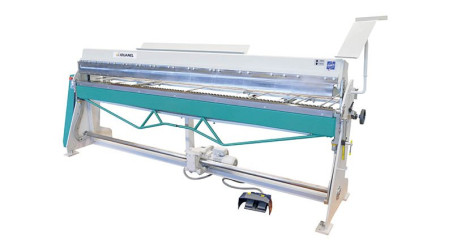

Semi-electric workshop folding machine 3,08 m - steel 0.8 mm - with segmented clamping beam tool
Ref. PVX3080TPE
Price and lead time: please consult us
Semi-electric folding machine for workshop, reference PVX3080TPE, useful folding length 3m, 1.0mm zinc capacity - 0.8mm S235JR steel capacity with electric segmented clamp and automatic loosening, foot-operated control by pedal, ergonomic folding beam and 15mm narrow tool, graduated angle gauge and scale
More info Optional complementary equipmentSemi-electric workshop folding machine 3,08 m - steel 0.8 mm - with segmented clamping beam tool
> Product plus:
- Electric segmented clamp
- Immediate plating of folds without effort
- Automatic clamp loosening when folding is complete without action onto the pedal
- Foot-operated control, more practical for holding and positioning of large-sized metal sheets

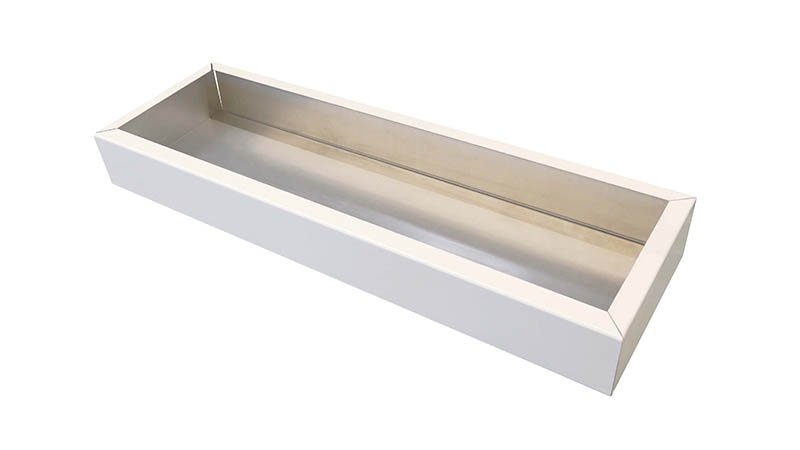

- Possible standard or complex folding with raised edges on 4 sides

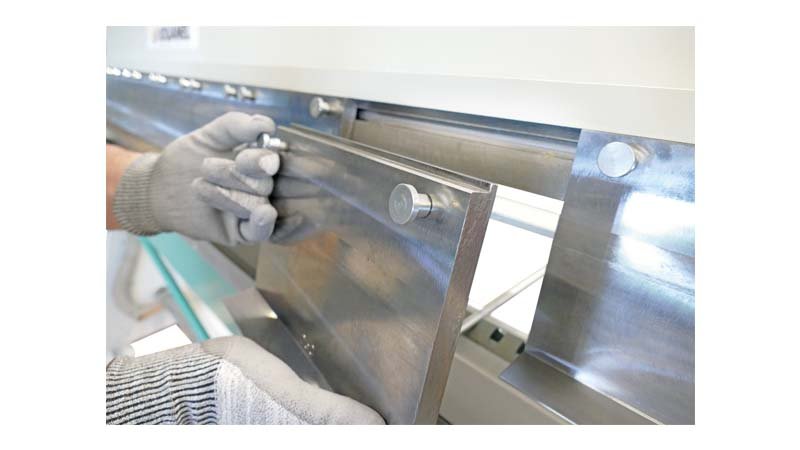

- Segments removable by pull and repositionable by sliding
- Lifting height of the clamp adjustable by the operator
- Suitable for small-lot shaping work
- Ergonomic folding beam for better operator's position
- Machined clamping beam tool to make hems easily
> Standard equipment:

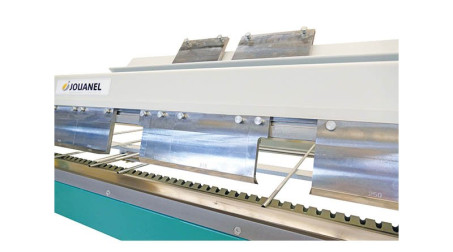

- Clamp with engraved segments (width of segments)

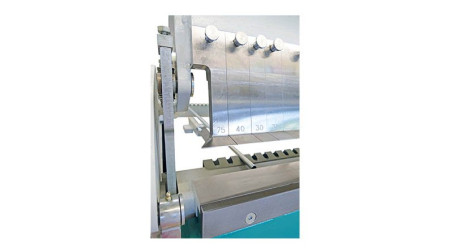

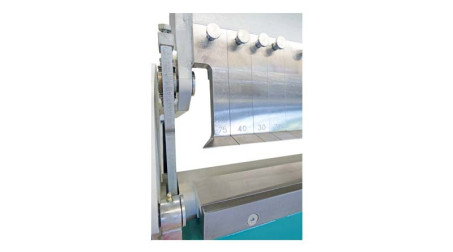

- Left-hand and right-hand horn (30mm)
- Interchangeable segmented clamping beam tool at 20°
- Automatic locking of the clamp
- Ergonomic folding beam with narrow 15-mm interchangeable tool to make close reverse-folds
- Assistance to folding by cylinder providing work reliability and rapidity, folding beam rotation on needle bearing

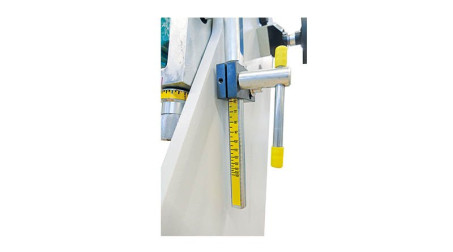

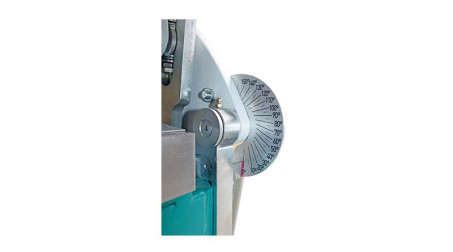

- Graduated angle gauge
- Graduated angle scale
- Clamping operated by foot pedal
- Automatic realeasing of the clamp once folding is complete
- Manual realeasing operated by foot pedal

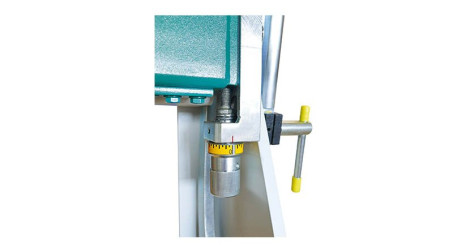

- Easy vertical adjustment of the folding beam thanks to graduated wheels makes possible radius adjustment and easy-made reverse bend
- Console and tool support

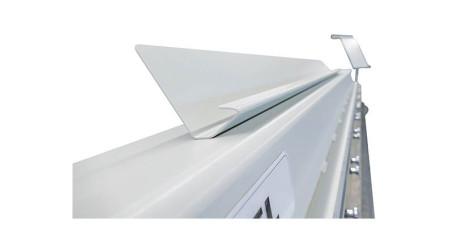

- Segments support
- Folding beam axis assembled on bearings
Product features
| Useful folding length (mm) |
3 080 |
| Capacity Zinc / steel S235JR (mm)* |
1 / 0,8 |
|
Maximum folding angle |
160° |
| Clamp opening (mm) | 95 |
|
Useful height ok keys (mm) |
120 |
|
Dimensions (mm) |
3 600 L x 800 l x 1400 H |
|
Gross weight (kg) |
1130 |
|
Power supply (V)** |
220 V mono |
|
Total power (kW) |
0,25 |
|
Segments width (mm) |
25, 30, 35, 40, 50, 75, 75, 100, 100, 150, 150, 200, 200, 200, 250, 250, 250, 300, 300, 300 |
|
* Capacity with standard tool of 15 mm |
|
| ** Choice of the voltage to be specified with the order | |
| Minimum fold width: 10-15 times the thickness acc. to metal | |
