Manual swaging-beading machines SB5

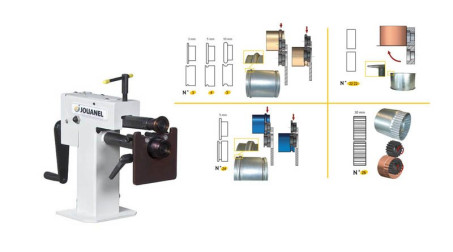

  • Bordeuse n°5 manuelle - acier 1,2 mm avec 6 jeux de molettes (3,4,5,22/22,24,26)

    Click to enlarge

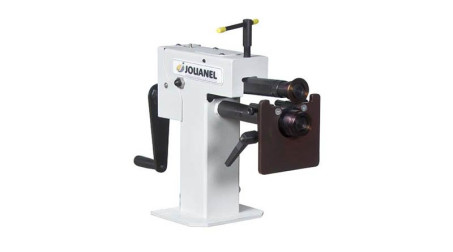

  • Bordeuse n°5 manuelle - acier 1,2 mm avec 6 jeux de molettes (3,4,5,22/22,24,26) - Mach seule

    Click to enlarge

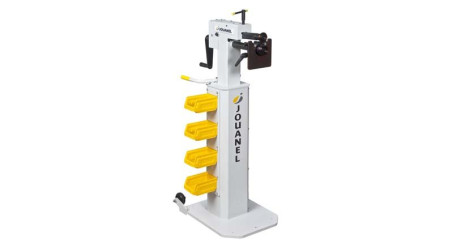

  • Bordeuse n°5 manuelle avec socle

    Click to enlarge

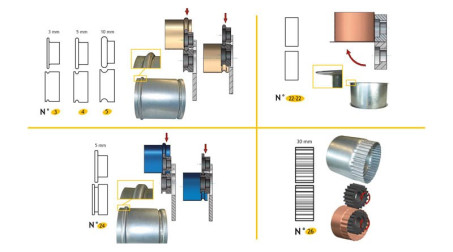

  • Bordeuse n°5 manuelle - acier 1,2 mm avec 6 jeux de molettes (3,4,5,22/22,24,26) - Molettes incluses

    Click to enlarge

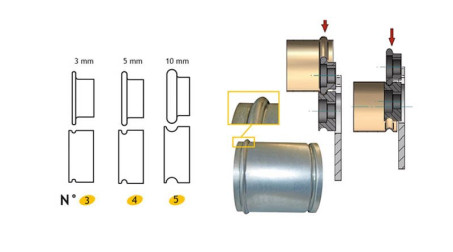

  • Bordeuse n°5 manuelle - acier 1,2 mm avec 6 jeux de molettes (3,4,5,22/22,24,26) - Molettes 3-4-5

    Click to enlarge

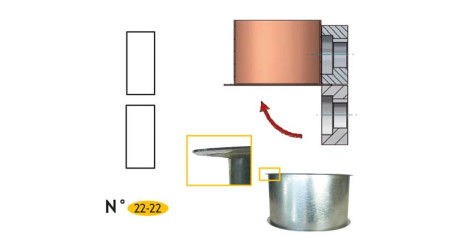

  • Bordeuse n°5 manuelle - acier 1,2 mm avec 6 jeux de molettes (3,4,5,22/22,24,26) - Molettes 22/22

    Click to enlarge

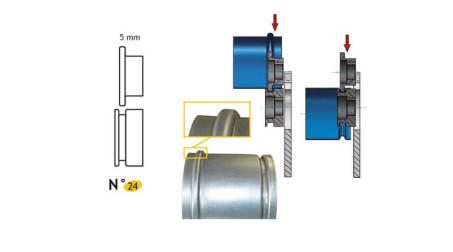

  • Bordeuse n°5 manuelle - acier 1,2 mm avec 6 jeux de molettes (3,4,5,22/22,24,26) - Molettes24

    Click to enlarge

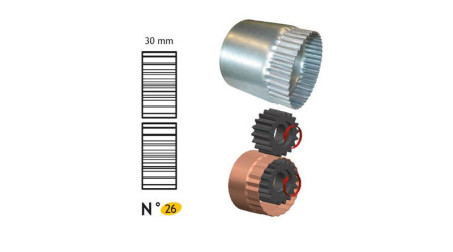

  • Bordeuse n°5 manuelle - acier 1,2 mm avec 6 jeux de molettes (3,4,5,22/22,24,26) - Molettes26

    Click to enlarge

SB5M swaging machine with 6 set of rolls (3, 4, 5, 22-22, 24, 26)

Ref. SB5M - PLUS

Lead time: please contact us

Swaging-beading machine for workshop, reference SB5M-PLUS, 1.2mm steel capacity, 200mm working depth, welded-metal frame. Swaging machine equipped with 6 sets of rolls (No. 3,4,5,22/22,24 and 26)

More info Optional complementary equipment
Add to my cart
for a quotation request
Product sheet

SB5M swaging machine with 6 set of rolls (3, 4, 5, 22-22, 24, 26)


> Product plus:

  • Large choice of rolls for all applications
  • Large working depth (200mm)
  • Quick adjustment of the lower shaft by roll
  • Support stop plate with high hardness and long lifetime (58HRC steel)
  • Base with castors for mobility and stability (optional)


> Standard equipment:

  • 6 sets of rolls (no. 3, 4, 5, 22-22, 24, 26)

Product features

Capacity* Stainless Steel / Aluminium (mm)

0,8 / 1,5
Capacity* Steel S235JR (mm)

1,2

Upper shaft horizontal adjustment

 yes
Ø rolls (mm) 58
Ø bore of rolls (mm) 24

Throat depth (mm)

200
Weight (kg) 34
Base

Optional
Double apron Optional
Sets of rolls Included:
Rolls N° 3, 4, 5, 22-22,
24 et 26

Optional:
Rolls N°1, 13, 6, 7, 23,
25, 26-50, 28, 32, 36

* The maximum capacities indicated for the use of our swaging-beading machines depend on the material and the choice of rolls sets used, these are given for information only.

For further information, please do not hesitate to contact us.

Optional complementary equipment

Tablier double avec colonnes pour SB5 - attention diminue col de cygne

Double stop plate for SB5 swaging machine

Double stop plate with columns, reference SB5-TAB2 for manual or electric swaging-beading machines models SB5. NB: Using the double stop plate reduces the working height



Add to my cart
for a quotation request
Socle avec roulettes de manutention et banettes de rangement

Base on wheels for SB3M and SB5M, with storage bins

Base, reference SB5-SOCLE with castors and carrying handles, equipped with 4 storage bins for rolls, base for manual swaging-beading machines models SB3 and SB5



Add to my cart
for a quotation request
Jeu de molettes n° 1 pour bordeuse SB5 et SB2

Set of rolls n°1 for SB5 swaging machines

Set of rolls no.1, reference SB5MOL1, for manual or electric swaging-beading machines SB5



Add to my cart
for a quotation request
Jeu de molettes n° 6 molette de souillage pour bordeuse SB5 et SB2

Set of rolls n°6, for SB5 swaging machines

Set of rolls no.6, reference SB5MOL6, offsetting rolls for manual or electric swaging-beading machines SB5



Add to my cart
for a quotation request
Jeu de molettes n° 7 molette 45 ° pour bordeuse SB5 et SB2

Set of rolls n°7, 45°, for SB5 swaging machines

Set of rolls no.7, reference SB5MOL7, rolls 45° for manual or electric swaging-beading machines SB5



Add to my cart
for a quotation request
Jeu de molettes n° 13 moulure de 8 mm pour bordeuse SB5 et SB2

Set of rolls n°13, 8-mm bead, for SB5 swaging machines

Set of rolls no.13, reference SB5MOL13, 8mm beading for manual or electric swaging-beading machines SB5



Add to my cart
for a quotation request
Jeu de molettes n° 23 pour bordeuse SB5et SB2 (molettes à cisailler)

Set of rolls n°23 for SB5 swaging machines (shearing rolls)

Set of rolls no.23, reference SB5MOL23, rolls to shear for manual or electric swaging-beading machines SB5



Add to my cart
for a quotation request
Jeu de molettes n° 25 molette carre 7 mm pour bordeuse SB5 et SB2

Set of rolls n°25, 7-mm squares, for SB5 swaging machines

Set of rolls no.25, reference SB5MOL25, 7mm square rolls for manual or electric swaging-beading machines SB5



Add to my cart
for a quotation request
Jeu de molettes n° 26-50 molette de retreind 50 mm pour bordeuse SB5 et SB2

Set of rolls n°26-50, 50-mm necking, for SB5 swaging machines

Set of rolls no.26-50, reference SB5MOL26-50, reducing rolls 50mm for swaging-beading machines SB5



Add to my cart
for a quotation request
Jeu de molettes n° 28 pour bordeuse SB5 et SB2

Set of rolls n°28 for SB5 swaging machines

Set of rolls no.28, reference SB5MOL28, for manual or electric swaging-beading machines SB5



Add to my cart
for a quotation request
Jeu de molettes de crevé longitudinal pour SB5

Set of rolls n°32 for perforation, for SB5 swaging machines

Set of rolls no.32, reference SB5MOL32, rolls for implementation of longitudinal holes for manual or electric swaging-beading machines SB5



Add to my cart
for a quotation request
Jeu de molettes n°36 combinées pour rétreindre et moulurer

Set of rolls n°36, necking and 6-mm bead, for SB5 swaging machine

Set of rolls no.36, reference SB5MOL36. Combined rolls to reduce and bead 6mm for manual or electric swaging-beading machines SB5



Add to my cart
for a quotation request
