Numerical swaging-beading machine, 2mm-steel, variable speed, double pedal FWD/BWD
New
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
Ref. SB7R-NUM
Price and lead time: please contact us

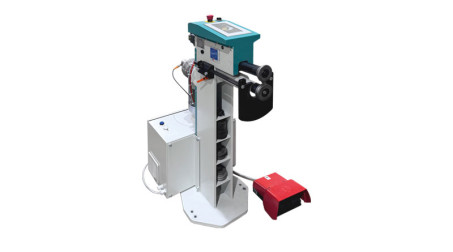

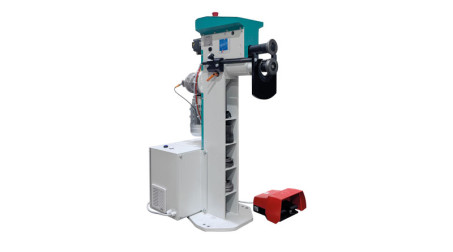

Numerical swaging-beading machine for workshop, reference SB7R-NUM, 2,0mm steel capacity, 260mm working depth, variable speed by button and double pedal forward/reverse control, welded-metal frame, single-piece base with integrated storage included
More info Optional complementary equipmentNumerical swaging-beading machine, 2mm-steel, variable speed, double pedal FWD/BWD
The new-generation swaging-beading machine designed to boost your performance!
Thanks to its CNC control with teach-in technology, the SB7R-NUM swaging-beading machine records the operator’s movements and automatically reproduces them with outstanding consistency and quality.
No complex programming required: the operator produces the first part, the machine memorizes every movement, and then repeats the exact same cycle as many times as needed. The result: perfectly consistent parts, series after series.
The SB7R-NUM is the ideal solution to secure your production, increase productivity, and enhance the expertise of your teams.
> Product plus:

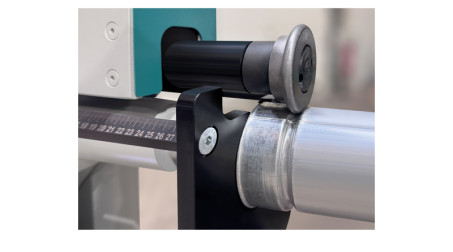

- Automatic learning of shaft movements and rolls pressure
- Accurate reproduction of taught sequences by memorizing
the operator’s actions - Simple and user-friendly CNC operation

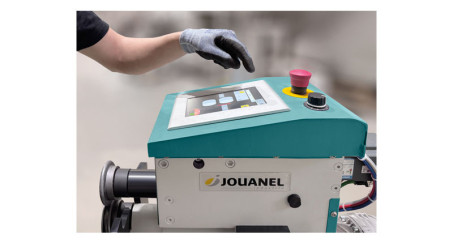

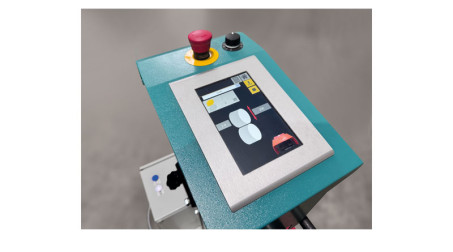

- 7’’ color touchscreen
- 3 modes: learning, manual or automatic
- No programming required
- Storage of frequently used programs
- Upper roller adjustment to one-tenth of a millimeter for precision
and consistent quality - Large working depth (260mm)
- Rotation speed via potentiometer according to the type
of mouldings produced - Dual pedal allowing forward and reverse rotation
without lifting the heel - Emergency stop system integrated into the pedal

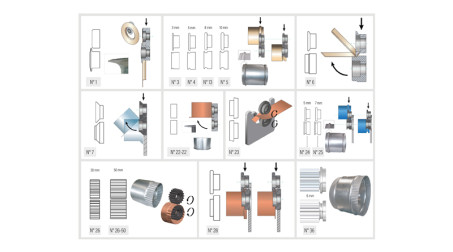

- Wide range of rolls for all applications
- One-piece base with integrated storage compartments
Product features
| Capacity* Stainless Steel / Aluminium (mm) |
1.2 / 2.5 |
| Capacity* Steel S235JR (mm) | 2.0 |
|
Horizontal adjustment of lower shaft |
Yes |
| Ø of rolls (mm) | 88 |
| Ø bore of rolls (mm) | 30 |
|
Throat depth (mm) |
260 |
| Rotation speed | Variable, by potentiometer |
| Foot-operated control | Double - Forward-backward rotation |
| Power supply | 230 V single-phase |
| Power (kW) | 3,69 |
| Base | One-piece - Included |
| Dimensions (W x D x H) (mm) |
500 x 900 x 1300 |
| Weight (Kg) | 200 |
| Sets of rolls |
Optional, rolls nb. |
|
* The maximum capacities indicated for the use of our swaging-beading machines depend on the material and the choice of rolls sets used, these are given for information only. |
|
