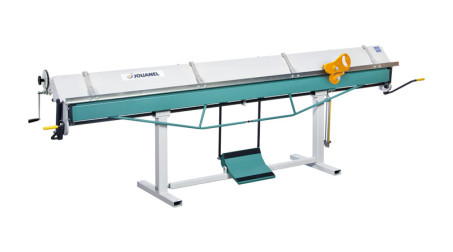

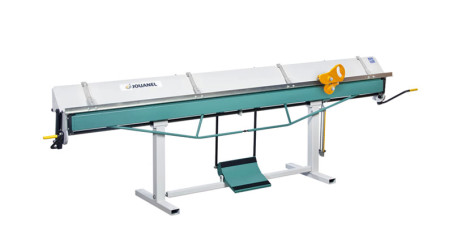

Manual folding machine 3 m - zinc, copper, alu: 1 mm, steel: 0.7 mm

Clamping foot pedal

Clamping-loosening foot pedal, reference PCXP3040, for manual folding machine PCX3080A. Anti-slip pedal with double action to optimize the use of the folding machine by keeping the operator's hands free when handling the parts to be folded

Guide rail for roller shear CCMA, for folding machine PCX3080A

Guiding rail, reference RCX3080MA for building site or workshop manual folding machine PCX3080A. Hinged device at the front of the folding machine intended to use the CCMA roller shear for the scribe cuts of material before folding

CCMA roller shear - cutting capacity zinc 0.8 mm, aluminium 0.8 mm, steel 0.63 mm

Roller shear, reference CCMA, 0.8mm zinc capacity, 0.7mm steel capacity, to cut the material on manual folding machines. Roller shear to be used on a guiding rail only

Beading accessory with a 16 or 18-mm Ø stick, length 3m (Ø to be specified at the order)

3-position aluminium geared-down beading accessory with 16 or 18mm Ø stick (Ø to specify at the order), reference ABAL3080, 0.55mm zinc capacity for a 16mm Ø stick and 0.70mm for a 18 Ø stick. Gear reduction system to make very regular beads without effort. Used with the manual folding machine PCX3080A

Stick length 3m, Ø 16mm, for ABH3080 and ABAL3080

Extra 16mm Ø stick, reference BAH16-3080, for geared-down beading accessory ABH16-3080 and ABAL3080. Used for the folding machines models PCX3080A, PVX3080, PVX3080T and PVS3080MR

Stick length 3m, Ø 18mm, for ABH3080 and ABAL3080

Extra 18mm Ø stick, reference BAH18-3080, for geared-down beading accessory ABH18-3080 and ABAL3080. Used for the folding machines models PCX3080A, PVX3080, PVX3080T and PVS3080MR

Set of 4 wheels

Set of 4 wheels, reference PCXR3040 used on the manual folding machine PCX3080A and the beading machine BAGPRO. This system makes easy the motion of the machine on stable and hard ground without dismantling the machine nor using handling equipment. Very useful to organize the workstation in the workshop easily

Sliding set of 2 back gauges with ways from 40 up to 510 mm

Set of 2 back gauge arms with slide type X, reference PCXB3040, adjustable from 65 to 530mm, for manual folding machine PCX3080A. The gauge arms slide on the fixing rail at the back of the machine and are stopped in position. Possible positioning of the metal sheet as per the desired dimension as well as its back support

Extra back gauge arm from 60 up to 500 mm

Extra back gauge arm with slide type X, reference PCXBS3, adjustable from 65 to 530mm. Adding an extra gauge arm provides a better back holding of the metal sheet on large lengths and improves positioning before cutting or folding

Tool to close seams at 180° with adjustable heigth

Tool to close the seams, reference OFP-180, to make hems at 180° from a seam at 135°, 0.8mm steel capacity

Roller offsetting tool on CCMA guide rail

Roller offsetting tool, reference OSRA, for use on the guide rails of Jouanel Industrie folding machines. For ribbing flat sheet metal, with or without hollow joints, to create underside cladding, cladding profiles, dormer cheeks or to reinforce the rigidity of sheet metal, steel capacity 0.8mm
