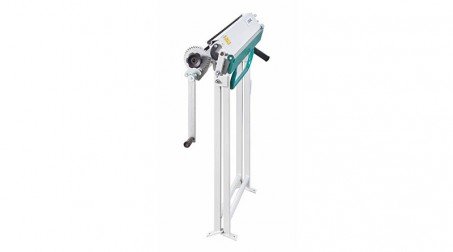

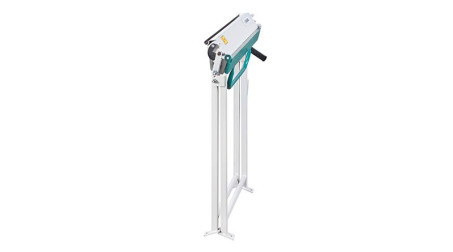

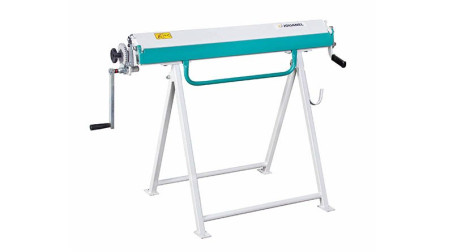

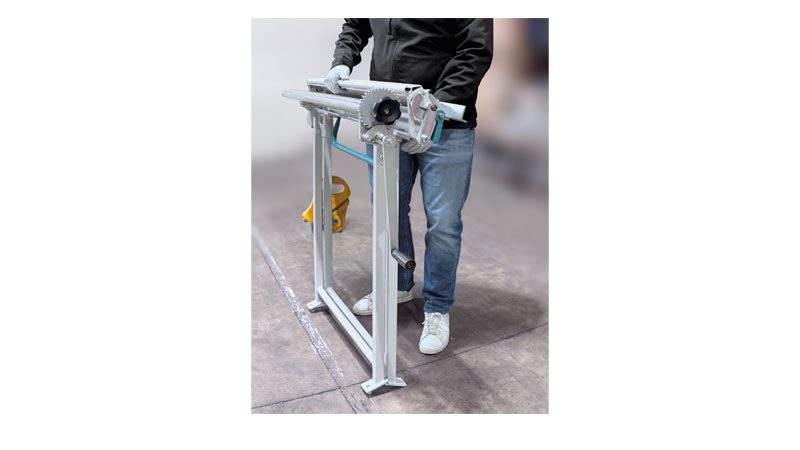

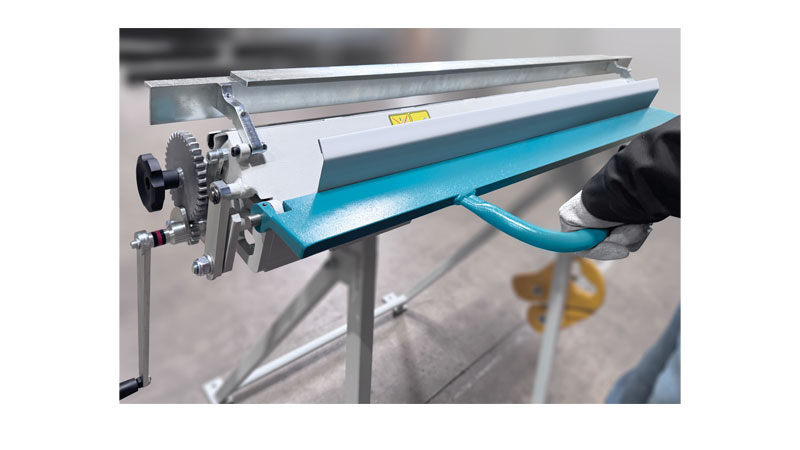

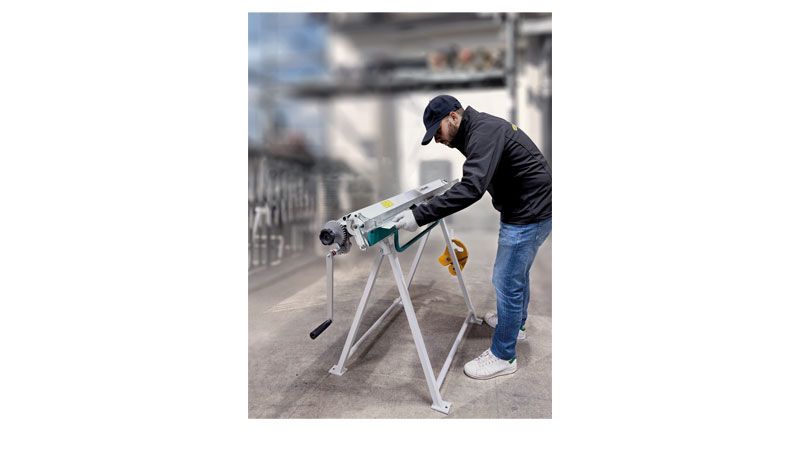

Manual building site folding machine 1.27 m - zinc 0.7 mm, folding legs

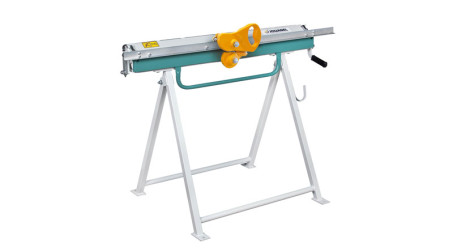

Guide rail for roller shear CCMA, for folding machine PCL1270A

Guiding rail, reference RCL1270MA for building site manual folding machine PCL1270A. Hinged device at the front of the folding machine intended to use the CCMA roller shear for the scribe cuts of material before folding

CCMA roller shear - cutting capacity zinc 0.8 mm, aluminium 0.8 mm, steel 0.63 mm

Roller shear, reference CCMA, 0.8mm zinc capacity, 0.7mm steel capacity, to cut the material on manual folding machines. Roller shear to be used on a guiding rail only

Beading accessory with a 14, 16 or 18-mm Ø stick, length 1.3m (Ø to be specified at the order)

3-position aluminium geared-down beading accessory with 14, 16 or 18mm Ø stick (Ø to specify at the order), reference ABAL1300, 0.70mm zinc capacity for a 14mm Ø stick, 0.80 mm for a 16mm Ø stick and 1.0mm for a 18mm Ø stick. Gear reduction system to make very regular beads without effort. Used with the manual folding machine PCL1270A

Stick length 1.27m, Ø 14mm, for ABH1300 and ABAL1300

Extra stick, 14mm diameter, reference BAH14-1300, for geared-down beading accesory ABH14-1300 and ABAL1300

Stick length 1.27m, Ø 16mm, for ABH1300 and ABAL1300

Extra stick, 16mm diameter, reference BAH16-1300, for geared-down beading accesory ABH16-1300 and ABAL1300

Stick length 1.27m, Ø 18mm, for ABH1300 and ABAL1300

Extra stick, 18mm diameter, reference BAH18-1300, for geared-down beading accesory ABH18-1300 and ABAL1300

Tool to close seams at 180° with adjustable heigth

Tool to close the seams, reference OFP-180, to make hems at 180° from a seam at 135°, 0.8mm steel capacity

Roller offsetting tool on CCMA guide rail

Roller offsetting tool, reference OSRA, for use on the guide rails of Jouanel Industrie folding machines. For ribbing flat sheet metal, with or without hollow joints, to create underside cladding, cladding profiles, dormer cheeks or to reinforce the rigidity of sheet metal, steel capacity 0.8mm
