Hydraulic press brakes PPS

  • Presse plieuse

    Click to enlarge

  • Presse plieuse PPS

    Click to enlarge

  • Presse-plieuse hydraulique 6,1 M - 300 tonnes avec outils

    Click to enlarge

  • Presse-plieuse hydraulique 6,1 M - 300 tonnes avec outils

    Click to enlarge

  • Presse-plieuse hydraulique 6,1 M - 300 tonnes avec outils

    Click to enlarge

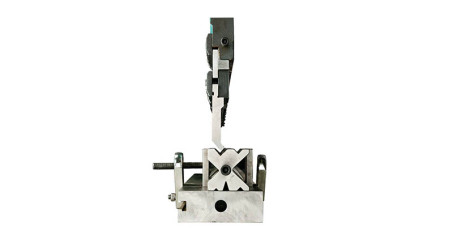

  • Poiçon detail_1

    Click to enlarge

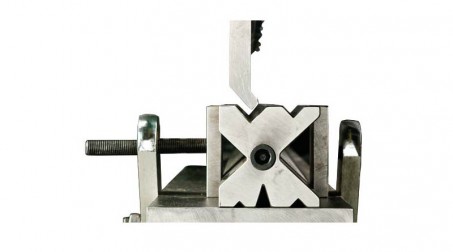

  • Poinçon detail_2

    Click to enlarge

Watch the video

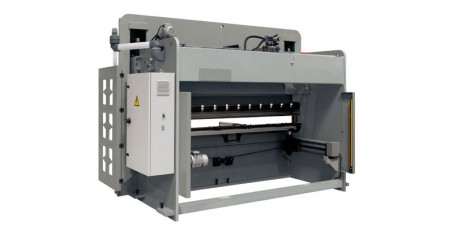

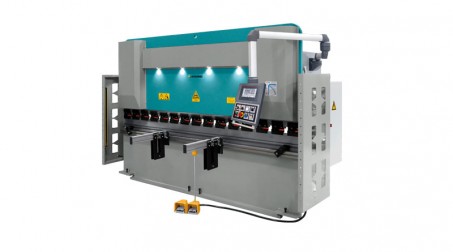

Hydraulic Press brake - 6.1 m - 300 tons with tools

Ref. PPS6300

Price and lead time: please consult us

Hydraulic press brake reference PPS6300, useful folding length 6,10m, capacity 300 tons, with tools

More info Optional complementary equipment
Add to my cart
for a quotation request
Product sheet

Hydraulic Press brake - 6.1 m - 300 tons with tools


> Product plus:

  • Large-sized anti-torsion rod providing a correct parallel position
    of the movable sliding block while lowering in pressure
  • Collapsible and adjustable rectifying working table
    for high accuracy and durability
  • Hydraulic power unit with double safety and adjustable pressure

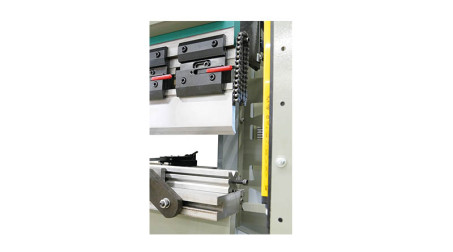

  • Quick and easy die turning
  • Immaterial safety barriers: before class 4


> Standard equipment:

  • Front metal sheet support 500mm, adjustable for work comfort

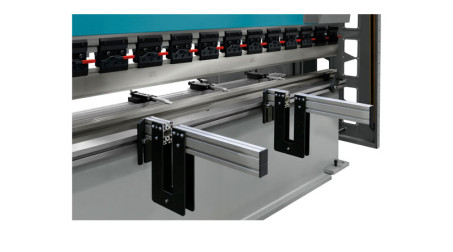

  • The back gauge is fixed on a slide for small-width pieces, height-adjustable, depth-adjustable with micrometric screw ensuring high accuracy. The gauge fingers are retractable.

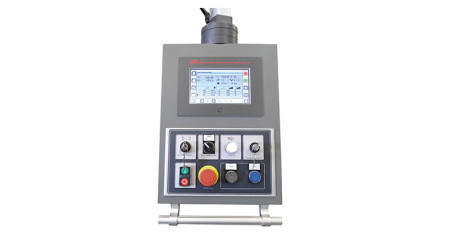

  • Numerical control with touchscreen to control axis X and Y (several thousand programs, 80 folds each), possible to save and create programs, which can also be uploaded by usb stick

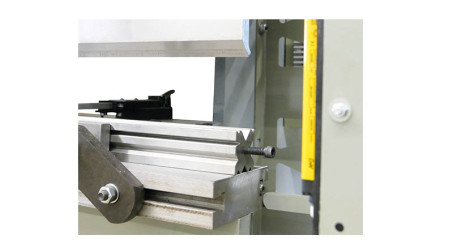

  • Various dies depending on models (see detail)
  • Punches 86° radius 0.6 mm, length 550 and/or 800mm acc. to model
  • Control by pedal
  • Power supply 400V three-phased + neutral

Product features

 For more information, consult our PRESS BRAKES catalogue or contact us



Optional complementary equipment

Table adaptable pour vé

Adaptable table for dies, height 25 mm, width 85/60, length 6,100 mm

Working table, reference PPS-T6100B60 for 6-meter press brakes. Suitable for 60mm wide self-centered dies



Add to my cart
for a quotation request
Bombage de table manuel avec repère, longueur 6 M (incluant la table adaptable)

Manual table crowning device with position-marker, length 6m (including the adaptable table)

Table crowning adjustment, reference PPS-BM6 for 6-meter press brakes. Table suitable for 60 and 90-mm base templates with manual crowning and scale identification



Add to my cart
for a quotation request

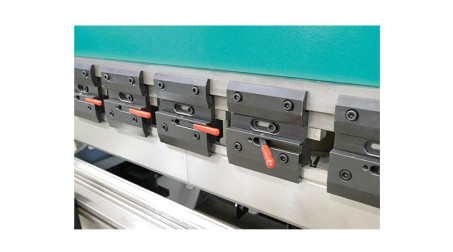

Serrage rapide manuel outils pour plieuses PPS 6 M

Manually-operated quick clamping system for the tools

Quick manual locking, reference PPS-SR6 for 6-meter press brakes. Flanges to make easy the change of tools



Add to my cart
for a quotation request
Bras de support de tôle supplémentaire

Extra front support for folding machines PPS

Front metal sheet support arm 500mm, reference PPS-ST-SUP for press brakes from 1 to 4 meters



Add to my cart
for a quotation request

Manual adjustment of the back gauge height

Manual adjustment, reference PPS-BRM6 for 6-meter press brakes. For an accurate adjustment of the back gauge height with a wheel located in the backside of the machine



Add to my cart
for a quotation request

Electric adjustment of the back gauge height

Electric adjustment, reference PPS-BRE6 for 6-meter press brakes. For accurate adjustment of the back gauge height by a control system located at the front of the machine



Add to my cart
for a quotation request
Poinçon 24°, r 0,5 mm, court 500 mm - vue profil

Punch 24° R 0.5 mm short 550 mm

Punch of 24°, reference POIN-S24-0.5C for press brakes from 1 to 4 meters. Short punch 550mm, 0.5mm radius



Add to my cart
for a quotation request
Poinçon 24°,r 0,5 mm, fractionné 800 mm - Vue profil

Segmented punch 24°, r 0.5 mm, 800 mm

Punch of 24°, reference POIN-S24-0.5F for press brakes from 1 to 4 meters. Split punch with horns 800mm, 0.5mm radius



Add to my cart
for a quotation request
Poinçon 24°, r 0,5 mm, longueur 800 mm - Vue profil

Punch 24° R 0.5 mm long 800 mm

Punch of 24°, reference POIN-S24-0.5L for press brakes from 1 to 4 meters. Long punch 800mm, 0.5mm radius



Add to my cart
for a quotation request
Poinçon 86°, r 0,6 mm, fractionné 800 mm - Vue Profil

Segmented punch 86° R 0.6 mm, 805 mm

Punch of 86°, reference POIN-S86-0.6F for press brakes from 1 to 4 meters. Split punch with horns 800mm, 0.6mm radius



Add to my cart
for a quotation request
Poinçon 86°, r 0,6 mm longueur 800 mm - Vue profil

Punch 86° R 0.6 mm short 800 mm

Punch of 86°, reference POIN-S86-0.6L for press brakes from 1 to 4 meters. Long punch 800mm, 0.6mm radius



Add to my cart
for a quotation request
