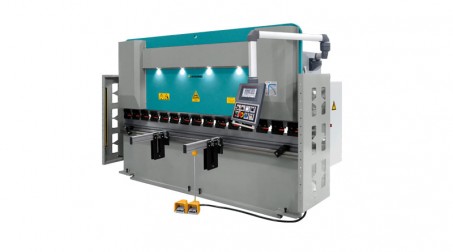

Hydraulic Press brake - 4.1 m - 160 tons with tools

> Product plus:

Large-sized anti-torsion rod providing a correct parallel position
of the movable sliding block while lowering in pressure
Collapsible and adjustable rectifying working table
for high accuracy and durability
Hydraulic power unit with double safety and adjustable pressure

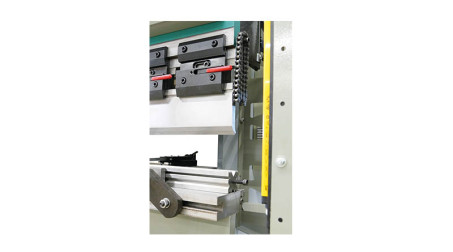

Quick and easy die turning
Immaterial safety barriers: before class 4

> Standard equipment:

Front metal sheet support 500mm, adjustable for work comfort

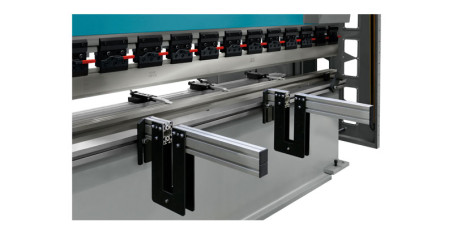

The back gauge is fixed on a slide for small-width pieces, height-adjustable, depth-adjustable with micrometric screw ensuring high accuracy. The gauge fingers are retractable.

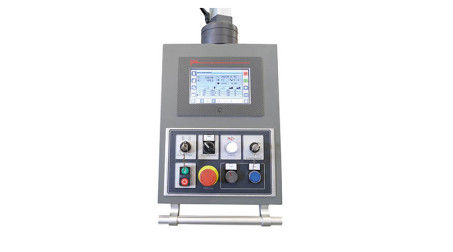

Numerical control with touchscreen to control axis X and Y (several thousand programs, 80 folds each), possible to save and create programs, which can also be uploaded by usb stick

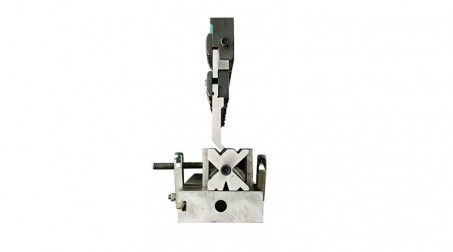

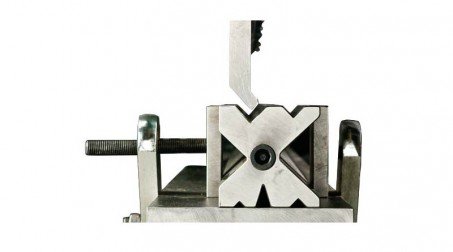

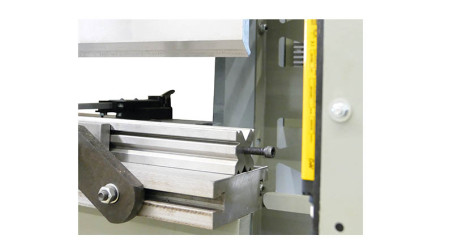

Various dies depending on models (see detail)
Punches 86° radius 0.6 mm, length 550 and/or 800mm acc. to model
Control by pedal
Power supply 400V three-phased + neutral

Product features

For more information, consult our PRESS BRAKES catalogue or contact us

Optional complementary equipment

Table adaptable pour vé, hauteur 25 mm, largeur 85/60, longueur 4100 mm

Adaptable table for dies, height 25 mm, width 85/60, length 4,100 mm

Working table, reference PPS-T4100B60 for 4-meter press brakes. Suitable for 60mm wide self-centered dies

Add to my cart
for a quotation request

Bombage de table manuel avec repère, longueur 4 M (incluant la table adaptable)

Manual table crowning device with position-marker, length 4m (including the adaptable table)

Table crowning adjustment, reference PPS-BM4 for 4-meter press brakes. Table suitable for 60 and 90-mm base templates with manual crowning and scale identification

Add to my cart
for a quotation request

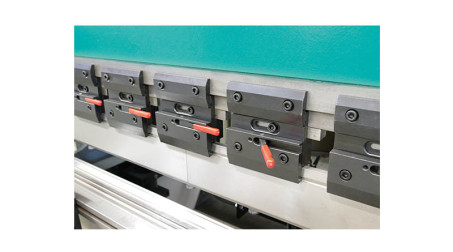

Manually-operated quick clamping system for the tools

Quick manual locking, reference PPS-SR4 for 4-meter press brakes. Flanges to make easy the change of tools

Add to my cart
for a quotation request

Extra front support for folding machines PPS

Front metal sheet support arm 500mm, reference PPS-ST-SUP for press brakes from 1 to 4 meters

Add to my cart
for a quotation request

Manual adjustment of the back gauge height

Manual adjustment, reference PPS-BRM4 for 4-meter press brakes. For an accurate adjustment of the back gauge height with a wheel located in the backside of the machine

Add to my cart
for a quotation request

Electric adjustment of the back gauge height

Electric adjustment, reference PPS-BRE4 for 4-meter press brakes. For accurate adjustment of the back gauge height by a control system located at the front of the machine

Add to my cart
for a quotation request

Poinçon 86°, r 0,6 mm longueur 800 mm - Vue profil

Punch 86° R 0.6 mm short 800 mm

Punch of 86°, reference POIN-S86-0.6L for press brakes from 1 to 4 meters. Long punch 800mm, 0.6mm radius

Add to my cart
for a quotation request

$Poinçon 86°, r 0,6 mm, fractionné 800 mm - Vue Profil$

Segmented punch 86° R 0.6 mm, 805 mm

Punch of 86°, reference POIN-S86-0.6F for press brakes from 1 to 4 meters. Split punch with horns 800mm, 0.6mm radius

Add to my cart
for a quotation request

Poinçon 24°, r 0,5 mm, longueur 800 mm - Vue profil

Punch 24° R 0.5 mm long 800 mm

Punch of 24°, reference POIN-S24-0.5L for press brakes from 1 to 4 meters. Long punch 800mm, 0.5mm radius

Add to my cart
for a quotation request

$Poinçon 24°,r 0,5 mm, fractionné 800 mm - Vue profil$

Segmented punch 24°, r 0.5 mm, 800 mm

Punch of 24°, reference POIN-S24-0.5F for press brakes from 1 to 4 meters. Split punch with horns 800mm, 0.5mm radius

Add to my cart
for a quotation request

Poinçon 24°, r 0,5 mm, court 500 mm - vue profil

Punch 24° R 0.5 mm short 550 mm

Punch of 24°, reference POIN-S24-0.5C for press brakes from 1 to 4 meters. Short punch 550mm, 0.5mm radius

Add to my cart
for a quotation request
