Asymmetrical electric roll-bending machines RPL
Fully electric roll-bending machine 2,05 m - steel 4 mm
Ref. RPL2050-40EE
Price and lead time: please contact us

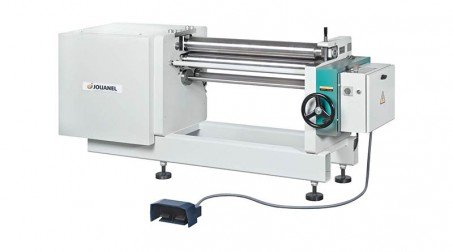

Electric roll-bending/levelling machine for workshop, reference RPL2050-40EE, useful rolling width 2m, 4,0mm steel capacity, motorized rolling with control by pedal, electric adjustment of the electric pinch roller
More info Optional complementary equipmentFully electric roll-bending machine 2,05 m - steel 4 mm
> Product plus:

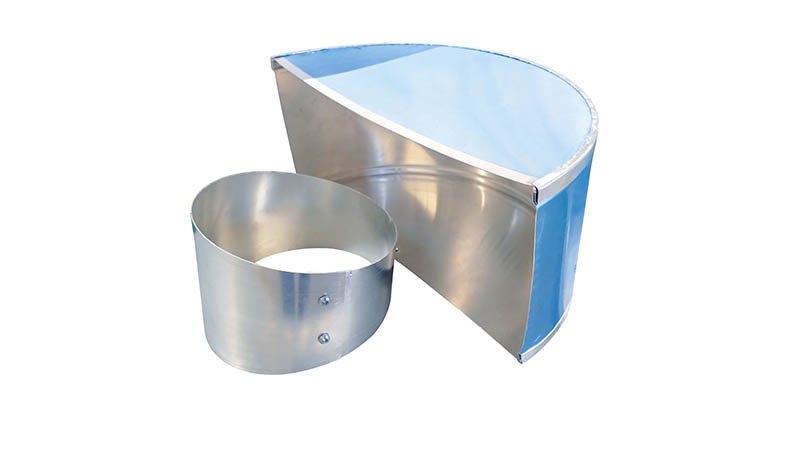

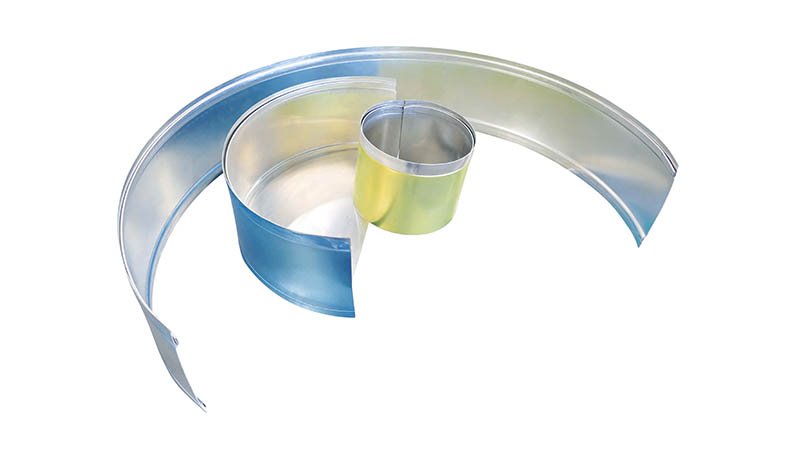

- Diameter of the rollers for production of small-diameter hoops

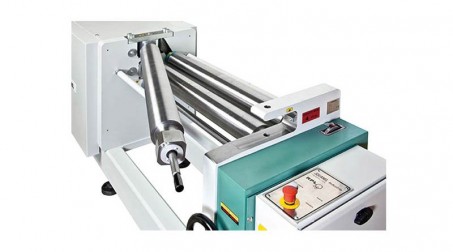

- Easy side relief with roller holding in horizontal position
- Possible conical rolling
- Motors equipped with brake to avoid inertia of rollers in rotation
> Standard equipment:
- Machined rollers made of high-carbon steel (95/105kg)
- Driving roller bearings on double needle bearing cage for long-term accuracy

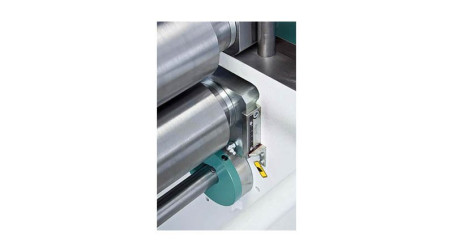

- Adjustment of the presser roller, controlled by wheel with graduated position index

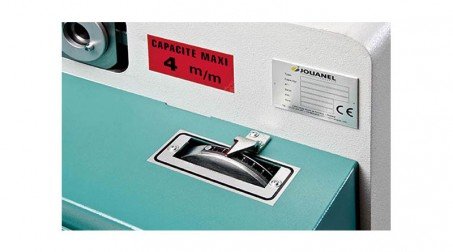

- Manual adjustment of the pinch roller with graduated index
- Motorized rolling with control by pedal
Product features
|
Useful length (mm) |
2 050 |
|
Capacity Steel S235JR (mm) |
4 |
|
Ø of rollers (mm)* |
160 |
|
Control |
Fully electric |
| Power supply (V)** | 400V tri-phased |
| Power (kW) | 3 |
|
Operating Dimensions (mm) |
3 520 x 850 x 1 200 |
|
Weight (kg) |
2 500 |
| * Ø of the roller x 1,5 = Ø of the hoop, approximately | |
| ** Voltage choice to signal at the order | |
