Asymmetrical electric roll-bending machines RPL

  • Rouleuse entièrement électrique 1,05 ml - acier 6 mm

    Click to enlarge

  • Rouleuse entièrement électrique 1,05 ml - acier 6 mm

    Click to enlarge

  • Rouleuse entièrement électrique 1,05 ml - acier 6 mm

    Click to enlarge

  • Rouleuse entièrement électrique 1,05 ml - acier 6 mm

    Click to enlarge

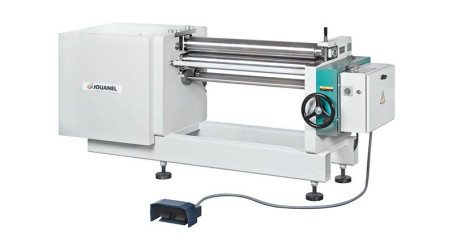

Fully electric roll-bending machine 1,05 m - steel 6 mm

Ref. RPL1050-60EE

Price and lead time: please contact us

Electric roll-bending/levelling machine for workshop, reference RPL1050-60EE, useful rolling width 1m, 6,0mm steel capacity, motorized rolling with control by pedal, electric adjustment of the electric pinch roller

More info Optional complementary equipment

Fully electric roll-bending machine 1,05 m - steel 6 mm


> Product plus:

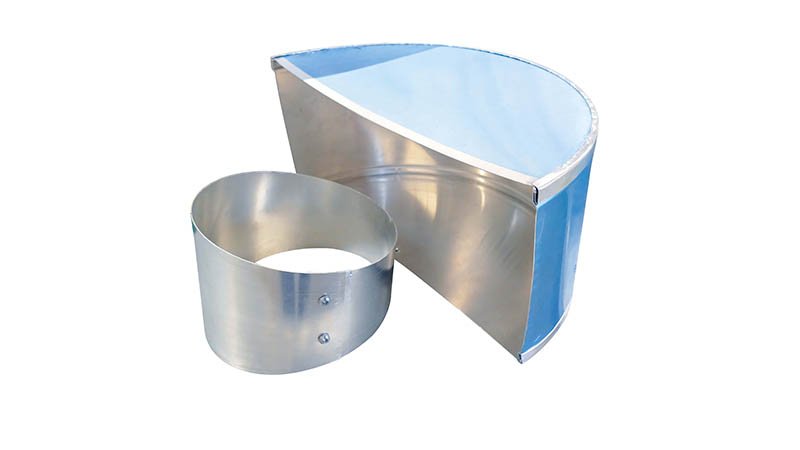

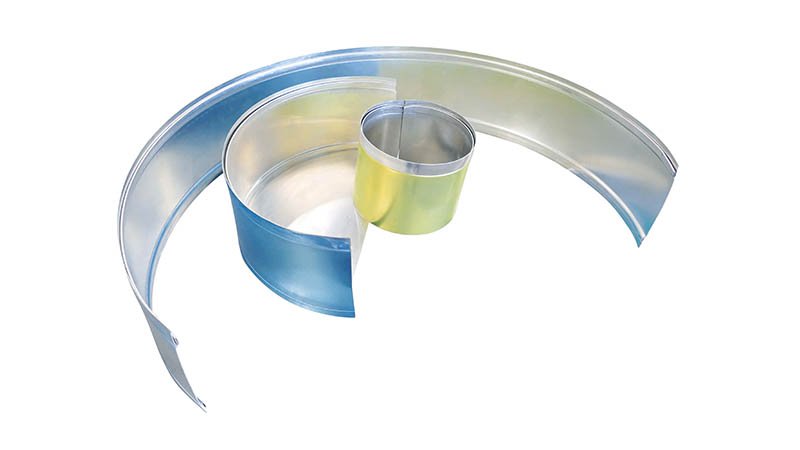

  • Diameter of the rollers for production of small-diameter hoops

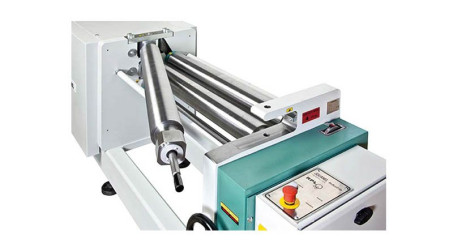

  • Easy side relief with roller holding in horizontal position
  • Possible conical rolling
  • Motors equipped with brake to avoid inertia of rollers in rotation


> Standard equipment:

  • Machined rollers made of high-carbon steel (95/105kg)
  • Driving roller bearings on double needle bearing cage for long-term accuracy

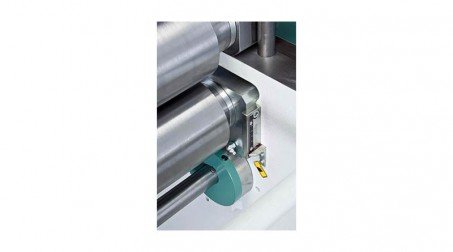

  • Adjustment of the presser roller, controlled by wheel with graduated position index

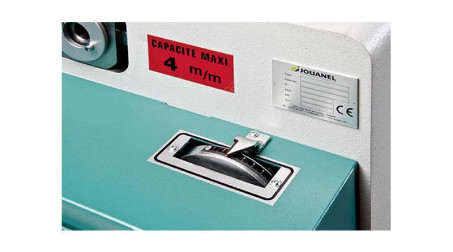

  • Manual adjustment of the pinch roller with graduated index
  • Motorized rolling with control by pedal

Product features

Useful length (mm)

1 050

Capacity Steel S235JR (mm)

6

Ø of rollers (mm)*

160

Control

 Fully electric
Power supply (V)** 400V tri-phased
Power (kW) 3

Operating Dimensions (mm)

2 600 x 1 100 x 1 350

Weight (kg)

1 900

* Ø of the roller x 1,5 = Ø of the hoop, approximately
** Voltage choice to signal at the order
