Asymmetrical electric roll-bending machines ROL
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge

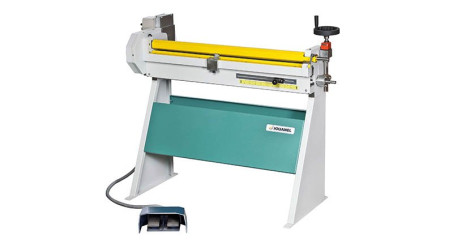

Electric roll-bending machine, 1050 mm x 1.5 mm soft steel - Upper roller Ø 60 mm
Ref. ROL1050-15EVV
Price and lead time: please contact us
Electric roll-bending machine for workshop, reference ROL1050-15EVV, useful rolling width 1m, 1.5mm steel capacity, variable speed, 60mm Ø upper roller, control pedal, on base
More infoElectric roll-bending machine, 1050 mm x 1.5 mm soft steel - Upper roller Ø 60 mm
> Product plus:
- Variable speed by switch

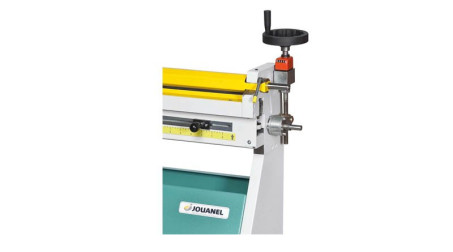

- Quick positioning of the bending roller with a position marker on counter for repetitive production
- Quick positioning with index of the presser roller depending on thickness
- Conical-shaped central rollers to compensate distortions
- Protecting cover of upper and lower rollers for safe work
> Standard equipment:
- Machined rollers made of high-carbon steel (24 HRC)

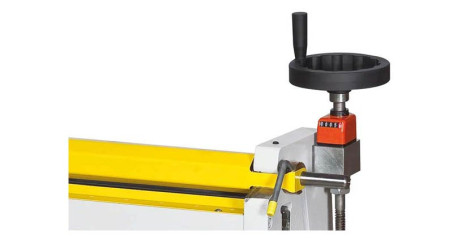

- Back roller equipped with a counter

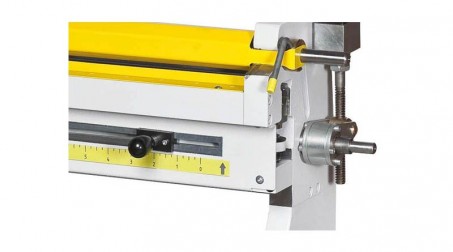

- Lower roller equipped with a position marker

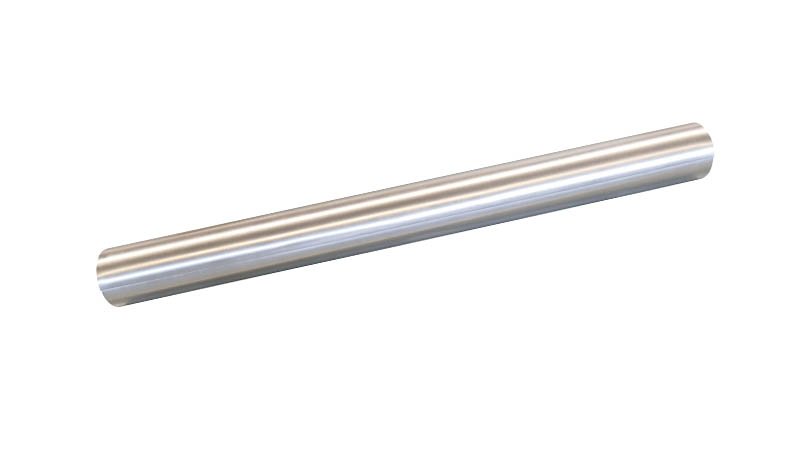

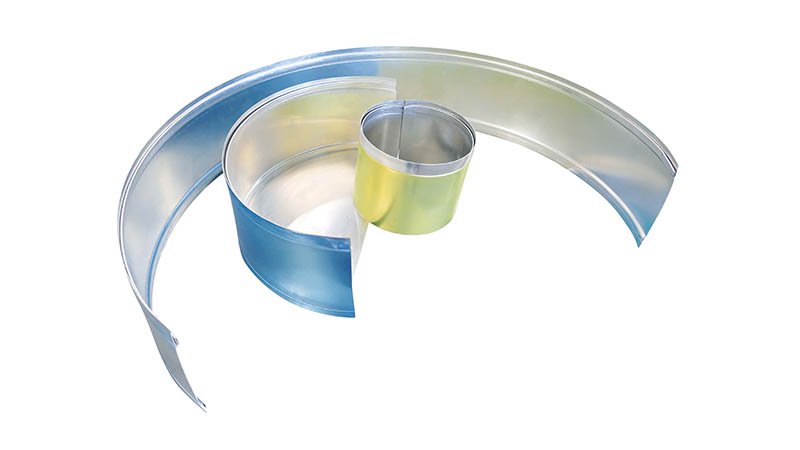

- For production of seaming pipes, upper roller equipped with a tangential slot

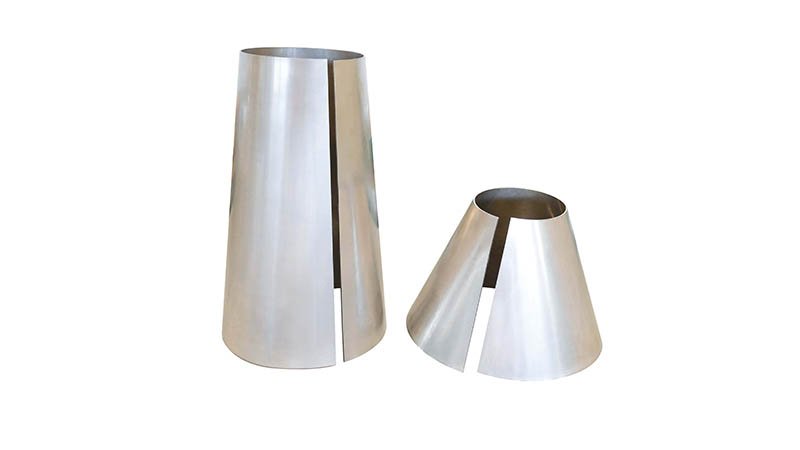

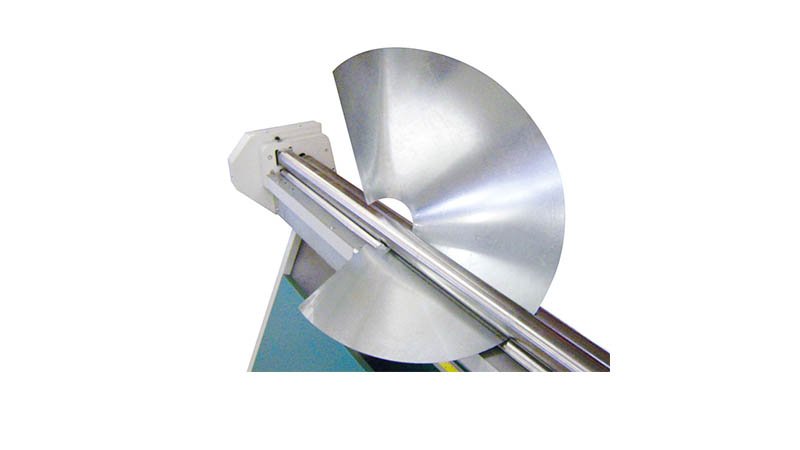

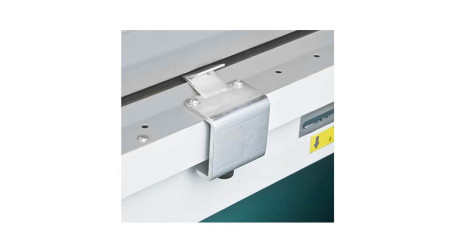

- For rolling of cones, machine equipped with a movable gauge
- Motor equipped with a variator to set the rolling speed easily depending on the works to be made
- Driving motor equipped with a brake for accurate positioning of the metal sheet (cancels the inertia effect)
- Protective enclosures
- Control pedal
Product features
|
Useful length (mm) |
1 050 |
|
Capacity Stainless Steel / Aluminium (mm) |
0,8 / 2 |
|
Capacity Steel S235JR (mm) |
1,5 |
|
Ø of rollers (mm) |
Upper and lower conical roller 60 mm |
|
Hardness of rollers (kg/mm²) |
90-100 |
|
Minimum rolling diameter (mm) |
80 to 120 mm acc. to thickness |
|
Working height (mm) |
920 |
|
Power (kW) |
0,75 |
|
Rotation speed of rollers (m/min) |
Variable |
|
Power supply (V)* |
220V, 1-ph+Earth |
|
Control |
Double pedal forward / backward |
|
Dimensions (mm) |
1 500 x 750 x 1 175 |
|
Gross weight (kg) |
266 |
| * Voltage choice to signal at the order |
