Dynamic graphics CNC controller and electric back gauge, for PGL12000 folding machines

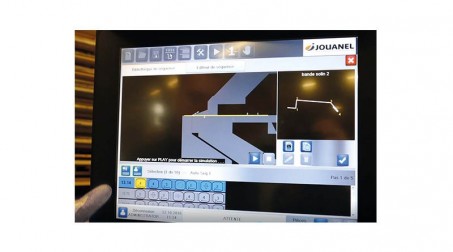

  • Commande numérique graphique dynamique - VueCN1

    Click to enlarge

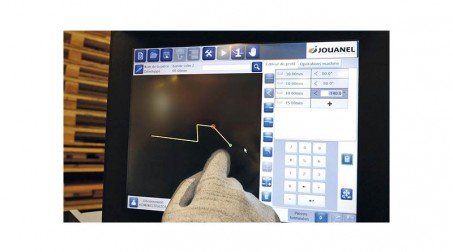

  • Commande numérique graphique dynamique - VueCN2

    Click to enlarge

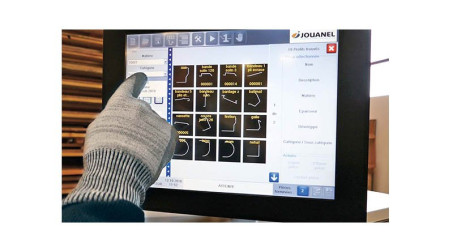

  • Commande numérique graphique dynamique - VueCN3

    Click to enlarge

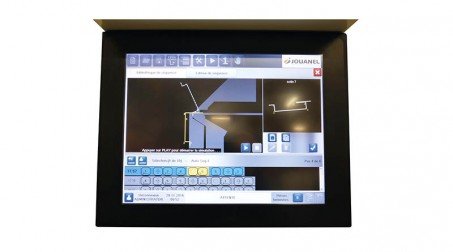

  • Commande numérique graphique dynamique - VueCN4

    Click to enlarge

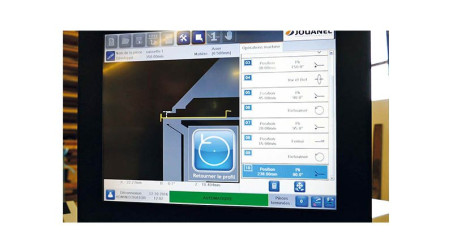

  • Commande numérique graphique dynamique - VueCN5

    Click to enlarge

Ref. PGL-GRAPH-12

Price and lead time: please consult us

Dynamic graphic numerical control, reference PGL-GRAPH-12, with large 19" color touch screen and electric back gauge, from 25 to 1250mm, for workshop hydraulic folding machine PGL length 12m



Dynamic graphics CNC controller and electric back gauge, for PGL12000 folding machines


> Product plus:

  • Intuitive graphic, dynamic touch control
  • Large 19’’ color screen for a better view whatever the user's position
  • Library of materials and programs
  • Feasibility analysis of a profile and folding simulation
  • Automatic angle controller (optional)
  • Automatic control of back gauge
  • Remote diagnosis and update


> Electric back gauge:

  • Back gauge stroke from 25 to 1250mm
  • Automatic speed variation of gauge fingers
  • Forward movement speed: 300mm/s
  • Backward movement speed: 500mm/s
  • Accuracy +/- 0,10mm
  • Minimum/maximum distance between 2 gauge fingers: 300mm/1010mm
  • Removable back gauge platforms for the production of reverse-folds
