Light semi-electric cutting lines CLD
Cutting unit 1.25m x 0.7mm, electric uncoiling, manual cutting, 3 sets of slitting blades
Ref. CLD-AE-REF
Price and lead time: please contact us

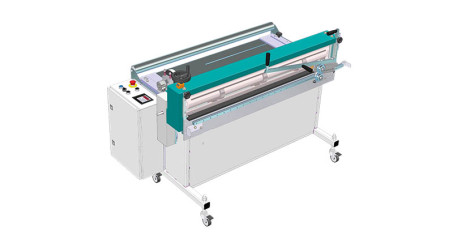

Light semi-electric cutting line, reference CLD-AE-REF, useful cutting width 1.25m, 0.7mm steel capacity, electric uncoiling, slitting function with 3 sets of adjustable blades, length measurement, manual cut by integrated roller shear

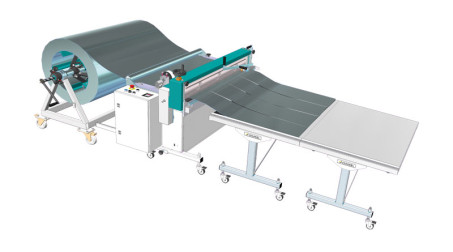

More info Optional complementary equipmentCutting unit 1.25m x 0.7mm, electric uncoiling, manual cutting, 3 sets of slitting blades
> Product plus:
- For fast cutting capacity of material acc. to the needs
- Easily movable in workshop
- Electric uncoiling and cut length measurement

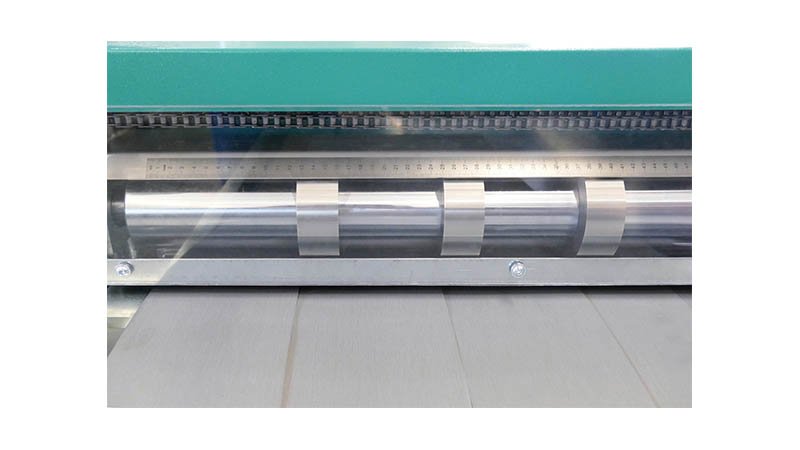

- With or without slitting, manual raising of the upper blades

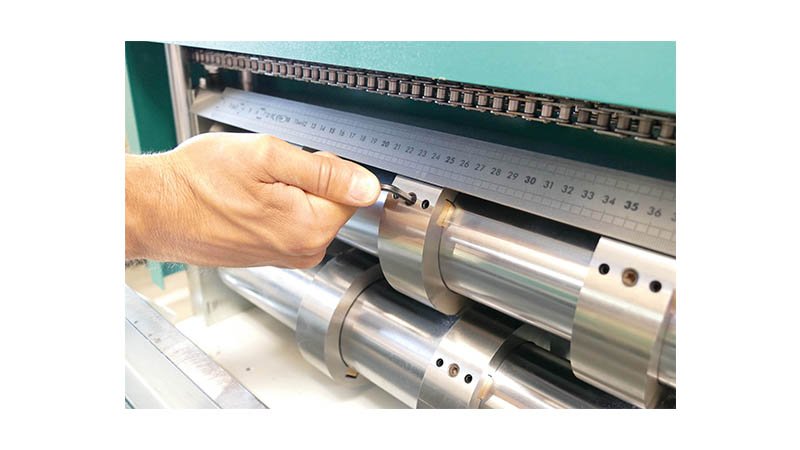

- Free positioning of the blades for slitting as per the desired dimensions
- Reverse-lock device of the coil
- Easy cut without effort
> Standard equipment:
- Electric uncoiling
- Speed 9m/ mn
- Electronic length programmer, accuracy +/- 15 mm
- Drive by rubber rollers
- Adjustable entry guides from 500 to 1250mm, on slides and locking handles
- Mount adapts to coils with a minimum width of 250 mm
- Guiding of the metal sheet on ball bearings
- Free roller at the entrance to guide the metal sheet in height
- Entry table with nylon protection
- Sheet clamping system with reverse-lock device of the coil
- 4 caster wheels with brakes
Product features
|
Maximum cutting capacity |
|
|
Soft Steel capacity (mm) |
0,7 |
|
Capacity Zinc, Copper, 1050-H44 Aluminum (mm) |
0,8 |
|
Capacity Stainless Steel (mm) |
0,5 |
|
Uncoiling |
|
|
Minimum width of the coil (mm) |
250 |
|
Maximum width of the coil (mm) |
1 250 |
| Slitting | |
| Sets of blades number | 3 |
| Power supply (V)* | 220V single |
| Power (kW) | 0,18 |
|
Dimensions |
|
|
Operating dimensions (mm) |
1 800 x 960 x 1 170 |
|
Sheet overhead clearance (mm) |
825 (adjustable +/- 15mm) |
|
Transport dimensions (mm) |
2 000 x 1 100 x 1 300 |
|
Net weight (kg) |
340 |
|
Gross weight (kg) |
400 |
| * Voltage choice to signal at the order |
