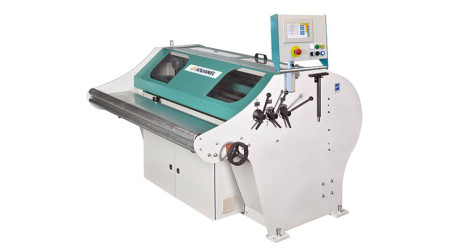

Cutting and automatic slitting line, 1.25 x 1mm, 3 sets of blades, CNC

> Product plus:

• Numerical control full option allowing a complete management of uncoiling and slitting
• Length cut by guillotine shears providing power and rapidity
• Automatic upward/downward movement of the slitting shaft
• Excellent accuracy of length cut +/- 0,5mm


NB: The cutting lines MLC are also available upon request without slitting station.
Feeding selector, please contact us

> Standard equipment:

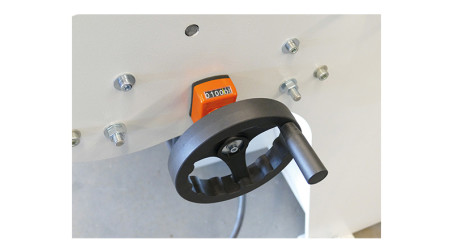

• Entry table with rollers including adjustable guides by lever with counter, 1,25m maximum width

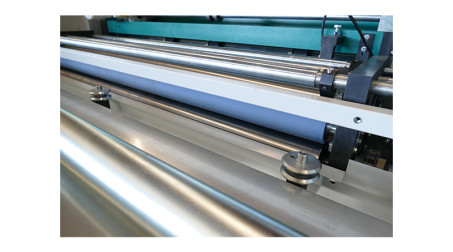

• Motorized feeding station (1 steel roller + 1 rubber-coated roller Ø 80mm)

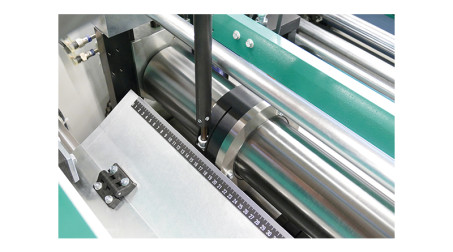

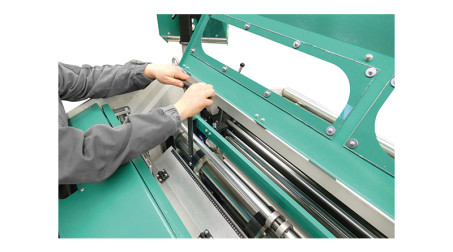

• Slitting station with ground shafts Ø 100mm, equipped with 3 sets of adjustable cutter blades Ø 154mm with reading on tool
• Minimum cutting width: 80mm between cutter blades 10mm at edge

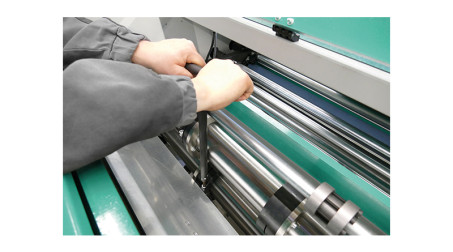

• Set of reversing cutter blades mounted on one-piece blade-carrying blocks
• Maximum uncoiling speed: 20 m/mn
• Mechanical guillotine shears

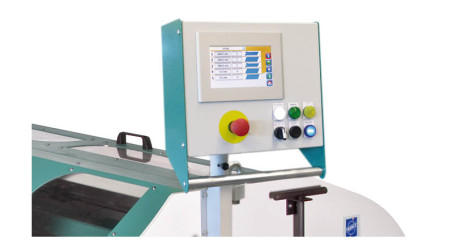

> Control console with:

• Color touch screen 7’’

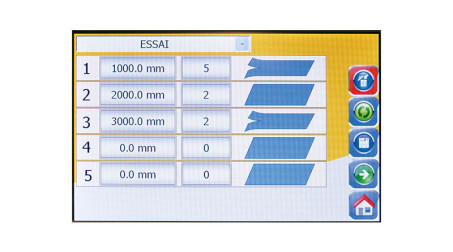

• Lengths and quantities programs
• Naming and saving of programs

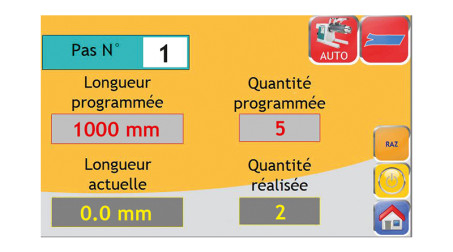

• Management of production: complete and partial cut lengths allowing material-saving
• Selection of slitting or not with automatic raising of the upper cutter blades without loss of material
• Automatic upward/downward movement of the slitting shaft
• Possible use of manual mode
• Daily counter and cutting accumulator
• Preventive maintenance menu
• Remote maintenance and updates via Ethernet connection (RJ45)
