Electric seamers for standing seam SER100A
-
Click to enlarge

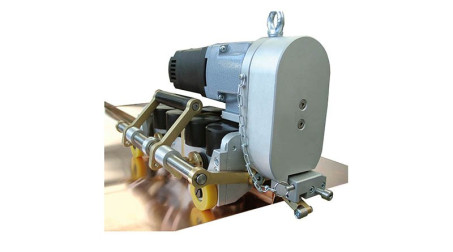

Bench swager for standing seam with cutting rolls and switch for automatic stop
Ref. SER100A-05WAD
Price and lead time: please contact us
Electric seamer with variable speed reference SER100A-05WAD for seaming of the first and second standing seam. Model equipped with a set of cutting rolls and automatic stop switch
More info Optional complementary equipmentBench swager for standing seam with cutting rolls and switch for automatic stop
> Product plus:
- Deletes the tedious seaming operation in manual mode
- Double lock seaming in one pass
- Constant seaming quality
- No damage to painted or coated sheets
- Automatic stop at the end of the profile
- Ideal for large lengths of profiles
- Rolls to cut the already seamed profiles to change a tray or lay down a used roof rapidly (profile cut at 8mm from the bottom)
> Standard equipment:
- Set of cutting rolls
- Automatic stop switch at the end of tray
Adjustable for seam heights from 25 to 60mm
Clean transition at cross seams
Barrel curved roofs can be seamed to the minimum radius 1.2m
Can be used or removed in the middle of a seam (preliminary hand-seaming required)
Winter heating device for outer temperatures lower than 10°C ref. SER-05SETHIVER (option)
Remote control with 12m cable ref. SER-05TELECDE for a rational and safe using in facade (option)
Product features
|
Weight (kg) |
22 |
|
Minimum radius for curved roofing (mm) |
1200 |
| Seam height (min-max) (mm) | from 25 to 60 |
|
Variable speed (m/min) |
from 5,5 to 13 |
| Power supply (V) |
230V single-phased |
| Total power (kW) | 1150 |
|
Capacity Steel / Zinc / Copper / Aluminium (mm) |
0,8 |
|
Capacity Stainless Steel (mm) |
0,5 |
|
Minimum assembly length (mm) |
140 |
|
Minimum operating temperature |
10°C (without winter set) |
| Winter heating device | Option |
|
Set of cutting rollers |
Included |
|
Automatic stop switch at the end of the tray |
Included |
| Remote control with cable | Option |
