Back support for sheets with automatic release for CGI3080A shears
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
Ref. CGI3080A-PEIGNE
Price and lead time: please contact us
Automatic back metal sheet holding plate for CGI3080A shear, reference CGI3080A-PEIGNE.
More infoBack support for sheets with automatic release for CGI3080A shears

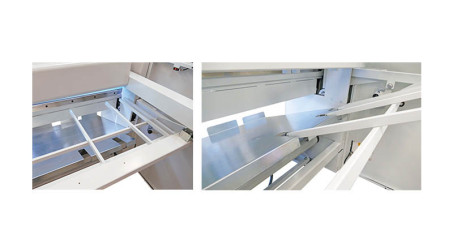

Device directly coupled to the cutting bar, allows the plate to be located automatically in upper position to hold the metal sheet and in low position to move the cut metal sheet into the tray
Product features
|
Maximum distance between 2 fingers (mm) |
495 | |||||||||
|
Minimum distance between 2 fingers (mm) |
40 |
|||||||||
|
Number of fingers |
12 |
|||||||||
|
Maximum sheet size (mm) |
750 |
|||||||||
