Back support for sheets with automatic release; 3080mm
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
Ref. CGM3080-PEIGNE
Lead time: please consult us

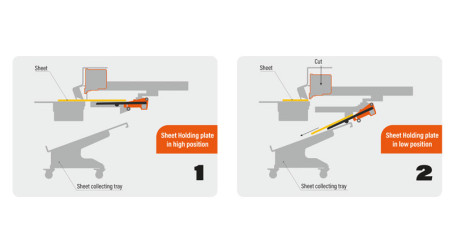

Automatic back metal sheet holding plate for shear CGM3080, reference CGM3080-PEIGNE. Device directly coupled to the cutting bar, allows the plate to be located automatically in upper position to hold the metal sheet and in low position to move the cut metal sheet into the tray
More infoBack support for sheets with automatic release; 3080mm
Product features
|
Maximum distance between 2 fingers (mm) |
495 | |||||||||
|
Minimum distance between 2 fingers (mm) |
40 |
|||||||||
|
Number of fingers |
12 |
|||||||||
|
Maximum sheet size (mm) |
750 |
|||||||||
