Universal electric folding machine 2.6m x 3.5mm

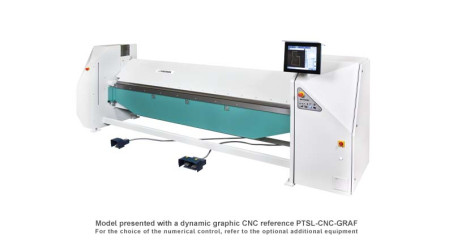

GRAF CNC, 3 axes, dynamic graphic for electric folding machines

Dynamic graphic numerical control, reference PTSL-CNC-GRAF, 3 axes, with large 17" color touch screen and electric back gauge

Bending angle correction (Springback mode) for GRAF CNC for PTS and PTL, thickness up to 1mm

Automatic angle controller, reference PTSL-CORANG-GRAF, maximum using capacity 1.0mm (option to be ordered with the numerical control)

SIEMPRO CNC, 2 axes, for electric folding machines

2-axis numerical control, reference PTSL-CNC-SIEMPRO, with 15'' color touch screen

Bending angle correction (Springback mode) for SIEMPRO CNC for PTS and PTL

Automatic angle controller, reference PTSL-CORANG-SIEMPRO, maximum using capacity 1.0mm (option to be ordered with the numerical control)

Safety light curtains at the front, quicker clamping, for electric folding machine

Safety light curtains at the front, quicker clamping, for electric folding machine, reference PTSL-SPEED-Z. This active optoelectronic safety device detects the presence of an object or person in their detection field. The light curtain offers optimal safety for the operator and thus increases the clamping speed of the clamping beam for even more productivity.

Control console on swivel arm for electric folding machine

Control console on swivel arm for electric folding machine, reference PTSL-CNC-POT. This articulated swivel arm supports the control consol and allows the operator to position the screen in front of him during the bending process. It can thus more easily follow the indications of the numerical control for the various folding operations (sheet positioning, inversions, reversals...)

Fully retractable back gauge fingers, pneumatic device, for 2.5m PTS/PTL

Fully retractable back gauge fingers, pneumatic device, référence PTSL-DP25. This option automatically lowers all back gauge fingers to the table level. This will allow a large sheet to be loaded from the rear without any obstacles.

Electric back gauge, 10-750 mm, for 2.5m electric folding machine

Electrically-operated back gauge, reference PTSL-BAE2.5-750, from 10 to 750mm, gauge managed by the numerical control of the folding machine. The gauge includes the back table to support large-sized metal sheets and 8 gauge fingers. NB: option to be planned with the order of the folding machine.

Electric back gauge, 10-1000 mm, for 2.5m electric folding machine

Electrically-operated back gauge, reference PTSL-BAE2.5-1000, from 10 to 1000mm, gauge managed by the numerical control of the folding machine. The gauge includes the back table to support large-sized metal sheets and 8 gauge fingers. NB: option to be planned with the order of the folding machine.

Electric back gauge, 10-1500 mm, for 2.5m electric folding machine

Electrically-operated back gauge, reference PTSL-BAE2.5-1500, range from 10 to 1500mm, gauge managed by the numerical control of the folding machine. The gauge includes the back table to support large-sized metal sheets, 2 lines of 8 gauge fingers. NB: option to be planned with the order of the folding machine and require pressurized air supply.

Surcharge for pneumatic conical folding, manual adjustment, for back gauge 750-1000mm

Surcharge for pneumatic conical folding, reference PTS-BAE33-PC, manual adjustment, for 750 and 1000mm electrically-operated back gauge.

Surcharge for pneumatic conical folding, manual adjustment, for back gauge 1500 mm

Surcharge for pneumatic conical folding, reference PTS-BAE33-1.5M-PC, manual adjustment, for 1500mm electrically-operated back gauge.

Control pedal on ground rail

Control pedal on ground rail, reference PTSL-PEDRAIL. The control pedal slides on a rail over the entire length of the machine. This system makes it easier to move the pedal and avoids leaving the power supply duct lying on the ground.

Folding beam tool, 8mm, for 2.5m PTS and PTL folding machines

Folding beam tool, thickness 8 mm, reference PTSL-RT8-2.5

Folding beam tool, 10mm, for 2.5m PTS and PTL folding machines

Folding beam tool, thickness 10mm, reference PTSL-RT10-25

Folding beam tool, 12mm, for 2.5m PTS and PTL folding machines

Folding beam tool, thickness 12mm, reference PTSL-RT12-2.5

Surcharge for segmented clamping beam, left and right corner segments

Surcharge for segmented clamping beam, reference PTS26T (standard clamping beam tool also included). Working height of the segments: 120mm, left and right corner segments 30mm.
