SIEMPRO numerical control, 3 axis, with electric back gauge 1250 mm, for PGL8000

  • Commande numérique - VueCN1

    Click to enlarge

  • Commande numérique - VueCN2

    Click to enlarge

  • Commande numérique - VueCN3

    Click to enlarge

  • Commande numérique - VueCN5

    Click to enlarge

Ref. SIEM-PRO-8

Price and lead time: please consult us

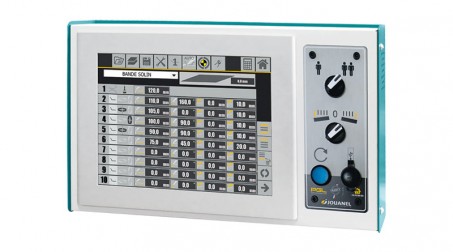

3-axis numerical control, reference SIEM-PRO-8, with 10" color touch screen and electric back gauge, from 25 to 1250mm, for workshop hydraulic folding machine PGL length 8m



SIEMPRO numerical control, 3 axis, with electric back gauge 1250 mm, for PGL8000


> Product plus:

  • Color touch screen 10"
  • Easy and user-friendly programming
  • Productivity boost and time-saving
  • Guides the operator when turning over or reversing the part before folding is necessary
  • Fast and unlimited creation of programs
  • Automatic control of the back gauge
  • Remote maintenance and updates


> Electric back gauge:

  • Back gauge stroke from 25 to 1250mm
  • Automatic speed variation of gauge fingers
  • Forward movement speed: 300mm/s
  • Backward movement speed: 500mm/s
  • Accuracy +/- 0,10mm
  • Minimum/maximum distance between 2 gauge fingers: 300mm/1010mm
  • Removable back gauge platforms for the production of reverse-folds
