Workshop universal electric folding machines PTL

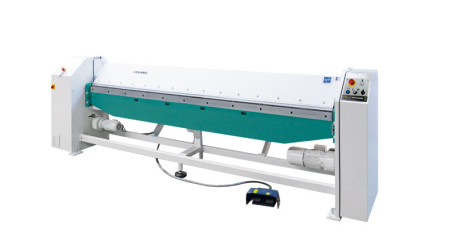

Electric folding machine, 2.6m x 1.5mm, automatic folding cycle, control by pedal
Ref. PTL2600-15
Price and lead time: please consult us
Universal electric folding machine for workshop, reference PTL2600-15, useful folding length 2,6m, 2.0mm 1050-H44 aluminum capacity - 1.5mm 400N/mm² steel capacity (capacities with 25mm folding beam tool), with automatic folding cycle, control by pedal, electromechanical angle gauge and 2 interchangeable 15mm and 25mm folding beam tools supplied
More info Optional complementary equipmentElectric folding machine, 2.6m x 1.5mm, automatic folding cycle, control by pedal
> Product plus:
- A powerful and multi-purpose electric machine
with a competitive price - Suitable for mass folding works
- Rapidity of the clamp and folding beam motion
- With or without numerical control depending on the budgets
- Automatic Cycle of Folding (CAP) enabling to perform successively the folding operations with a 25% gain in productivity
> Standard equipment:
- Supply of 2 interchangeable 15 and 25-mm folding beam tools
- Interchangeable clamping beam tool at 20° making easy the production of U profiles
- Electromecanic angle gauge from 0 to 145°
- Folding beam crowning device
- Adjustment of the folding radius
- Clamp locking control by foot pedal allowing to keep hands free
- Control of the folding beam, upwards and downwards by push-buttons
- Folding automatic cycle CAP
- Emergency stop device with cable
Product features
| Useful folding length (mm) |
2 600 |
|
Capacity steel 400N/mm² (mm) with folding beam 25mm |
1.5 |
|
Capacity steel 400N/mm² (mm) with folding beam 15mm |
1.0 |
|
Capacity 1050-H44 aluminum (mm) with folding beam 25mm |
2.0 |
|
Capacity 1050-H44 aluminum (mm) with folding beam 15mm |
1.5 |
| Capacity galvanized steel (mm) with folding beam 25mm | 1.2 |
| Capacity galvanized steel (mm) with folding beam 15mm | 0.8 |
| Capacity stainless steel 304L (mm) with folding beam 25mm | 1.0 |
| Capacity stainless steel 304L (mm) with folding beam 15mm | 0.65 |
|
Table height (mm) |
835 |
| Clamping beam tool angle |
20° |
| Clamp opening (mm) |
130 |
| Folding speed (°/s) | 60 |
| Clamping speed without safety light curtains (mm/s) | 10 |
| Clamping speed with safety light curtains (mm/s) | 40 |
|
Power supply (V)* |
400 V three-ph + neutral + earth |
|
Total power (kW) |
1.5 |
|
Dimensions without back gauge (mm) |
3 470 x 620 x 1 190 |
|
Dimensions with electric back gauge |
3 470 x 1 673 x 1 550 |
| Gross weight (kg) without electric back gauge |
1 600 |
|
* Electrical voltage to be specified upon order |
|
|
90° bending capacities / Minimum fold width: 15 times the thickness Clamp flattening = 1/3 of max. thickness capacity |
|
Optional complementary equipment

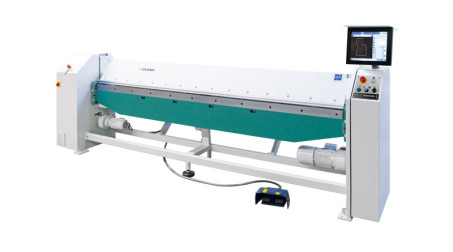

GRAF CNC, 3 axes, dynamic graphic for electric folding machines
for a quotation request
Bending angle correction (Springback mode) for GRAF CNC for PTS and PTL, thickness up to 1mm
for a quotation request
Bending angle correction (Springback mode) for SIEMPRO CNC for PTS and PTL
for a quotation request

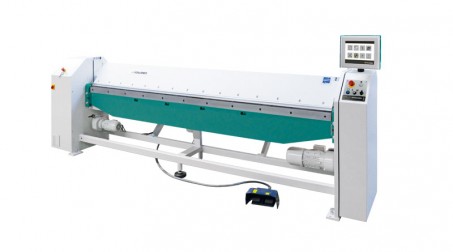

SIEMPRO CNC control of the clamping beam position for PTL folding machines
for a quotation request
Fully retractable back gauge fingers, pneumatic device, for 2.5m PTS/PTL
for a quotation request
Electric back gauge, 10-750 mm, for 2.5m electric folding machine
for a quotation request
Electric back gauge, 10-1000 mm, for 2.5m electric folding machine
for a quotation request
Electric back gauge, 10-1500 mm, for 2.5m electric folding machine
for a quotation request
Safety light curtains at the front, quicker clamping, for electric folding machine
for a quotation request
