Cutting line with automatic slitting and straightening, 1.25m x 1mm, 3 sets of blades, CN

> Product plus:

• The more complete cutting line of the range
• Numerical control full option allowing a complete management of uncoiling and slitting
• Automatic upward/downward movement of the slitting shaft
• Length cut by guillotine shears providing power and rapidity
• Excellent accuracy of length cut +/- 0,5mm
• Straightening station

NB: The cutting lines MLC are also available upon request without slitting station.
Feeding selector: please contact us

> Standard equipment:

• Entry table with rollers including adjustable guides by lever with counter, 1,25m maximum width
• Motorized feeding station (1 steel roller + 1 rubber-coated roller Ø 80mm)

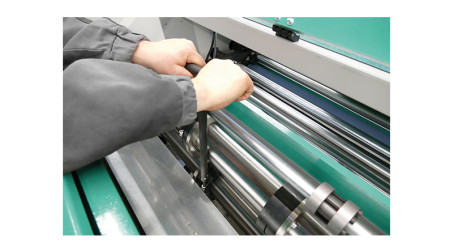

• Slitting station with ground shafts Ø 100mm, equipped with 3 sets of adjustable cutter blades Ø 154mm with reading on tool
• Minimum cutting width: 80mm between cutter blades 10mm at edge
• Set of reversing cutter blades mounted on one-piece blade-carrying blocks
• Mechanical guillotine shears
• Maximum uncoiling speed: 20 m/mn

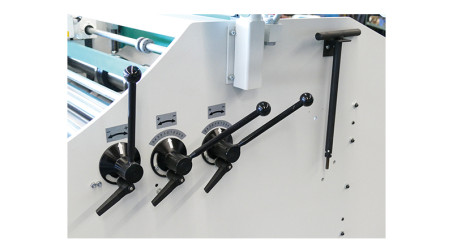

• Straightening station (3 steel rollers Ø 80mm - (position reading on graduated screen)

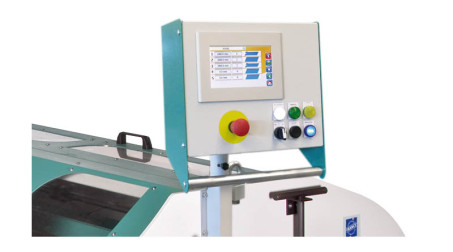

> Control console with:

• Color touch screen 7’

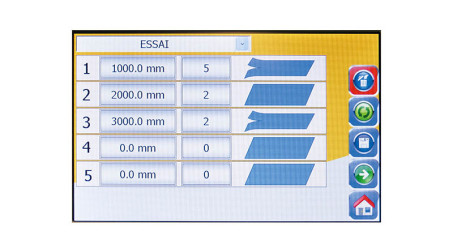

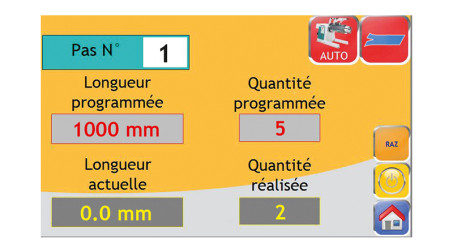

• Lengths and quantities programs
• Naming and saving of programs
• Automatic reset
• Management of production: complete and partial cut lengths allowing material-saving
• Selection of slitting or not with automatic raising of the upper cutter blades without loss of material
• Automatic upward/downward movement of the slitting shaft
• Possible use of manual mode
• Daily counter and cutting accumulator
• Preventive maintenance menu
• Remote maintenance and updates via Ethernet connection (RJ45)
